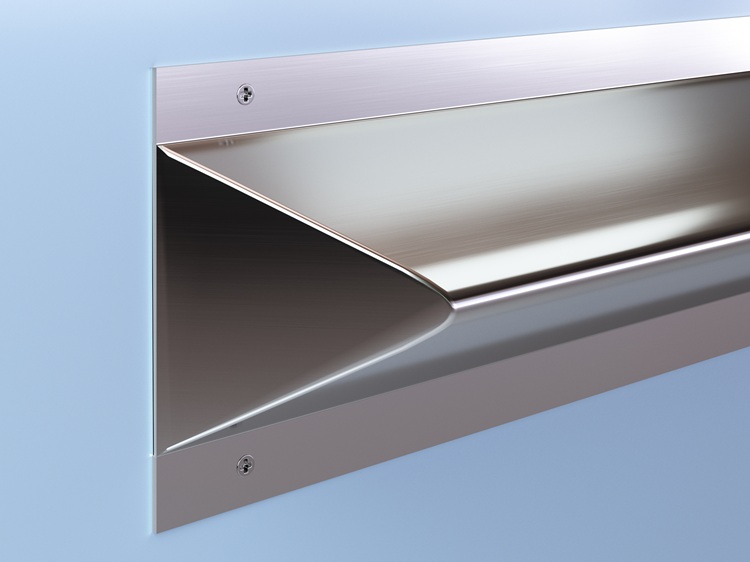

BCR-4SS Stainless Steel Crash Rail

Custom stainless steel crash rail with bull-nose profile and solid welded 45-degree returns

See available product options

BCR-4SS stainless steel crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. The BCR-4SS crash rail consists of 16ga stainless steel rail that fastens directly to the wall through top and bottom flanges. The custom rails terminate with solid welded 45-degree returns, which reduces seams where dirt and germs can collect. BCR-4SS crash rails are pre-cut, pre-formed, and pre-drilled at the factory per field verified dimensions, which means no field modification is required prior to installation. Inquire about custom options that meet your specific project requirements.

Features:

  • Manufactured from 16ga type 304 #4 satin finish stainless steel
  • Standard and custom profiles available
  • Other stainless steel grades and finishes available

Available options

  • SKU#:

    BCR-4SS

  • Material:

    16ga type 304 #4 satin finish stainless steel

  • Mounting Options:

    Mechanical fasteners (by others)

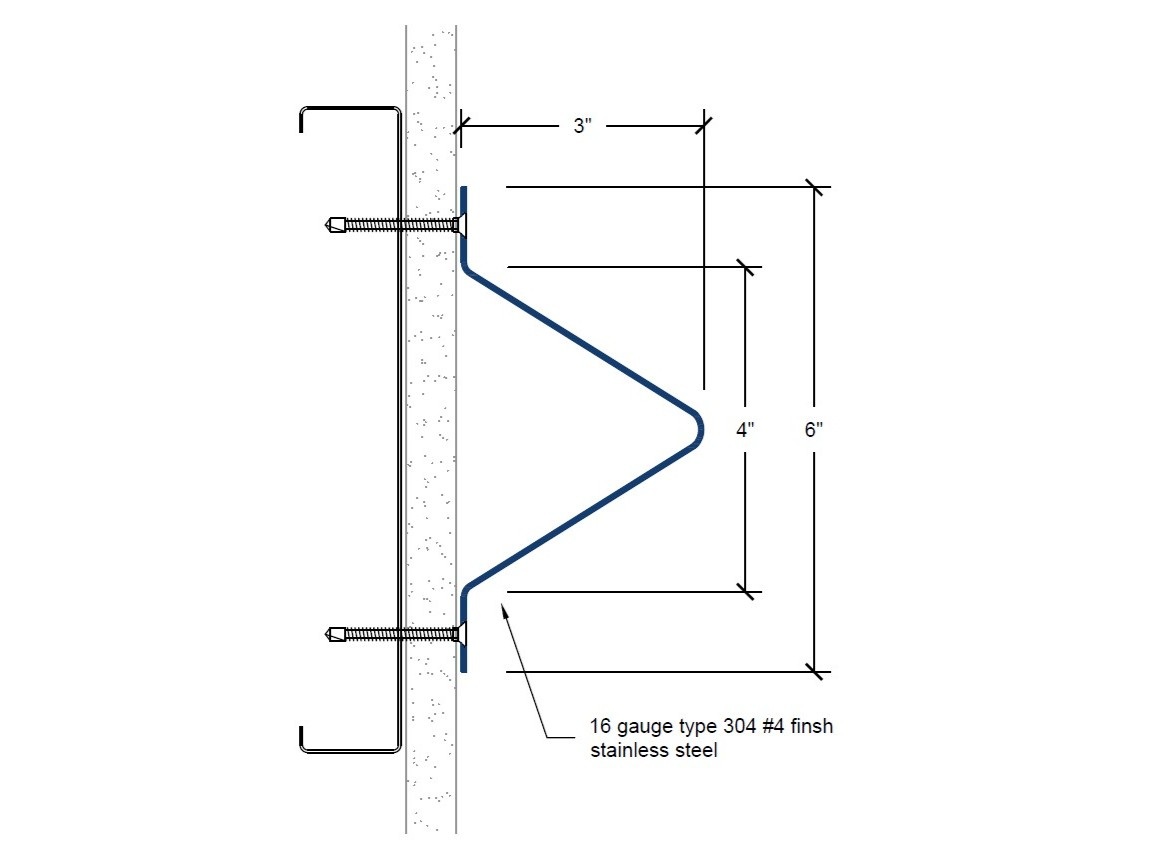

  • Profile:

    6-inch height x 3-inch depth

  • More Info:

    BCR-4SS is custom-fabricated to field verified dimensions with solid welded 45-degree returns. Custom profiles available. Other stainless steel grades and finishes available.

BCR-4SS Custom-Fabricated Lengths

BCR-4SS Custom-Fabricated Lengths

All BCR-4SS crash rail is pre-cut, welded, and pre-drilled at the factory and should require no further modification.

BCR-4SS

Select the files that you want to download and click “Download” to get the files.

Cleaning-maintenance

pdf

Cad-drawing

dwg

Installation-instructions

pdf

Roll over a color or texture sample to view a larger swatch.

Click the colors or textures required for your swatch request.

Stainless Steel

#4 finish

BCR-4SS | 6-inch profile

No custom options are available for this product.
