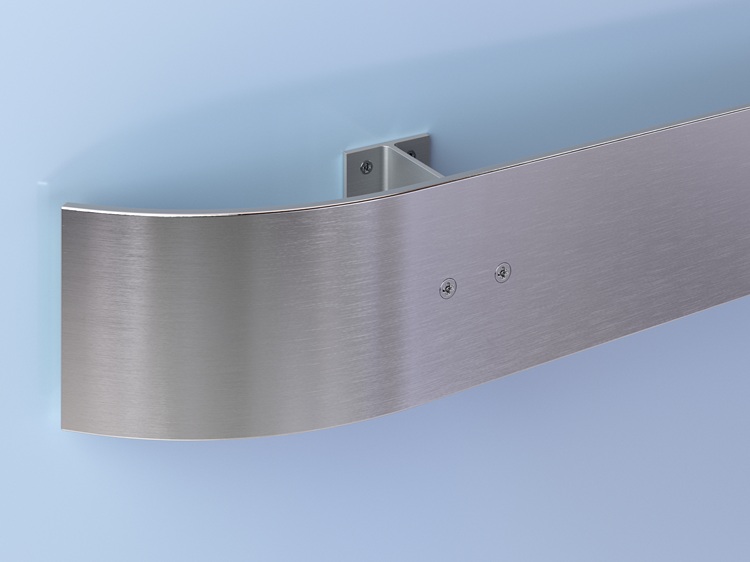

CRS-100 Stainless Steel Crash Rail

Custom 1/4-inch stainless steel crash rail that mounts off the wall with I-beam brackets.

See available product options

CRS-100 stainless steel crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. The CRS-100 series crash rail consists of 1/4-inch thick stainless steel rail that fastens to the wall with anodized aluminum I-beam mounting brackets. The 1/4-inch rail is formed with 3-inch radius corner bends and returns, which allows for a continuous installation. CRS-100 crash rails are pre-cut, pre-formed, and pre-drilled at the factory per field verified dimensions, which means no field modification is required prior to installation. Choose from several standard options below or inquire about custom options that meet your specific project
requirements.

Features:

  • Manufactured from 1/4-inch type 304 #4 satin finish stainless steel rail with anodized aluminum I-beam brackets
  • Standard and custom heights available
  • Standard and custom brackets available
  • Standard and custom corner radiuses available
  • Other stainless steel grades and finishes available

Available options

  • SKU#:

    CRS-100

  • Material:

    1/4-inch type 304 #4 satin finish stainless steel rail with anodized aluminum I-beam mounting brackets

  • Mounting Options:

    Mechanical fasteners (by others)

  • Profile:

    4-inch height x 3 1/4-inch depth

  • More Info:

    CRS-100 is custom-fabricated to field verified dimensions with factory formed corners and returns. Custom profiles available. Other stainless steel grades and finishes available.

CRS-100 Custom-Fabricated Lengths

CRS-100 Custom-Fabricated Lengths

All CRS-100 crash rail is pre-cut, pre-formed, and pre-drilled at the factory and should require no further modification.

CRS-100

Select the files that you want to download and click “Download” to get the files.

Cleaning-maintenance

pdf

Cad-drawing

dwg

Installation-instructions

pdf

Roll over a color or texture sample to view a larger swatch.

Click the colors or textures required for your swatch request.

Stainless Steel

#4 finish

CRS-100 | 4-inch profile

No custom options are available for this product.

    Note: You may upload only one PDF file (2MB file size).

    Click to browse
    or drag and drop your files


    Clear

    • SKU#:

      CRS-106

    • Material:

      1/4-inch type 304 #4 satin finish stainless steel rail with anodized aluminum I-beam mounting brackets

    • Mounting Options:

      Mechanical fasteners (by others)

    • Profile:

      6-inch height x 3 1/4-inch depth

    • More Info:

      CRS-106 is custom-fabricated to field verified dimensions with factory formed corners and returns. Custom profiles available. Other stainless steel grades and finishes available.

    CRS-106 Custom-Fabricated Lengths

    CRS-106 Custom-Fabricated Lengths

    All CRS-106 crash rail is pre-cut, pre-formed, and pre-drilled at the factory and should require no further modification.

    CRS-106

    Select the files that you want to download and click “Download” to get the files.

    Cleaning-maintenance

    pdf

    Cad-drawing

    dwg

    Installation-instructions

    pdf

    Roll over a color or texture sample to view a larger swatch.

    Click the colors or textures required for your swatch request.

    Stainless Steel

    #4 finish

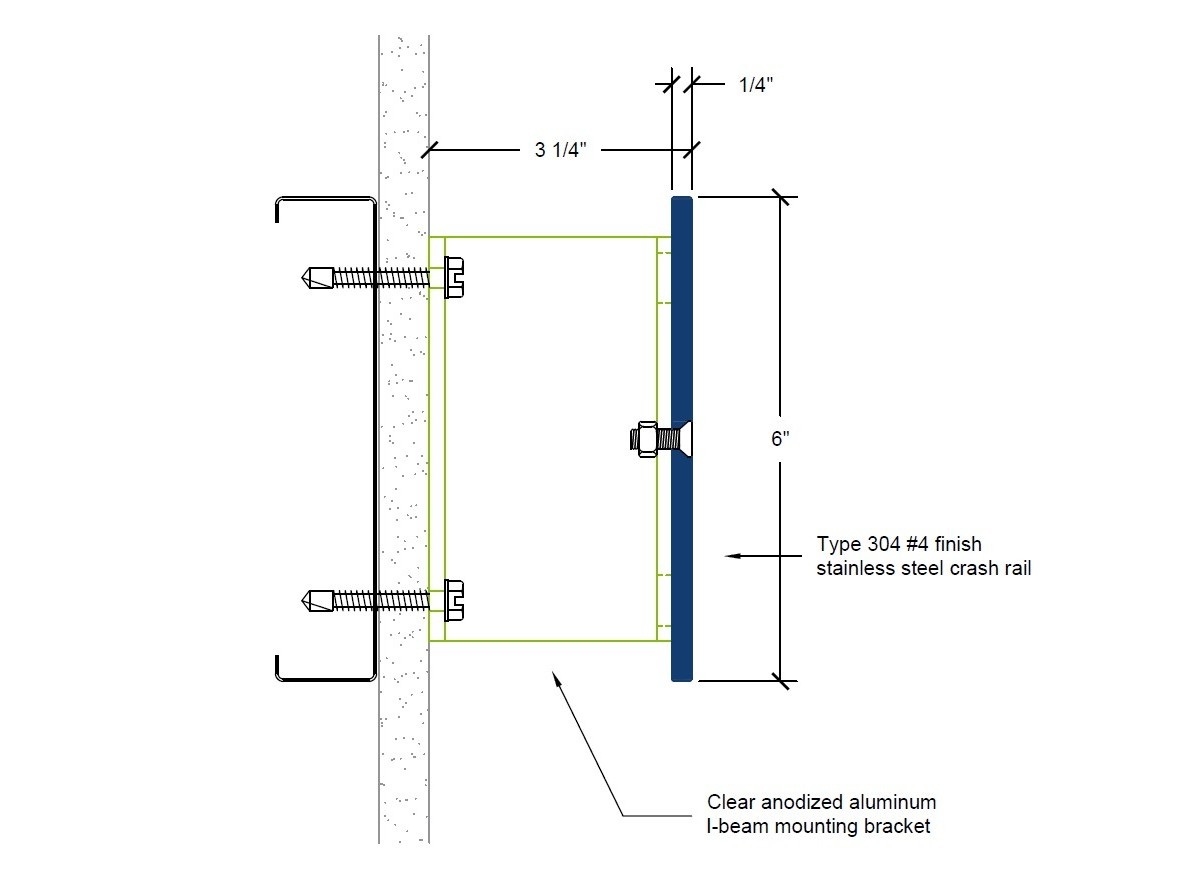

    CRS-106 | 6-inch profile

    No custom options are available for this product.

      Note: You may upload only one PDF file (2MB file size).

      Click to browse
      or drag and drop your files


      Clear

      • SKU#:

        CRS-120

      • Material:

        1/4-inch type 304 #4 satin finish stainless steel rail with anodized aluminum I-beam mounting brackets

      • Mounting Options:

        Mechanical fasteners (by others)

      • Profile:

        8-inch height x 3 1/4-inch depth

      • More Info:

        CRS-120 is custom-fabricated to field verified dimensions with factory formed corners and returns. Custom profiles available. Other stainless steel grades and finishes available.

      CRS-120 Custom-Fabricated Lengths

      CRS-120 Custom-Fabricated Lengths

      All CRS-120 crash rail is pre-cut, pre-formed, and pre-drilled at the factory and should require no further modification.

      CRS-120

      Select the files that you want to download and click “Download” to get the files.

      Cleaning-maintenance

      pdf

      Cad-drawing

      dwg

      Installation-instructions

      pdf

      Roll over a color or texture sample to view a larger swatch.

      Click the colors or textures required for your swatch request.

      Stainless Steel

      #4 finish

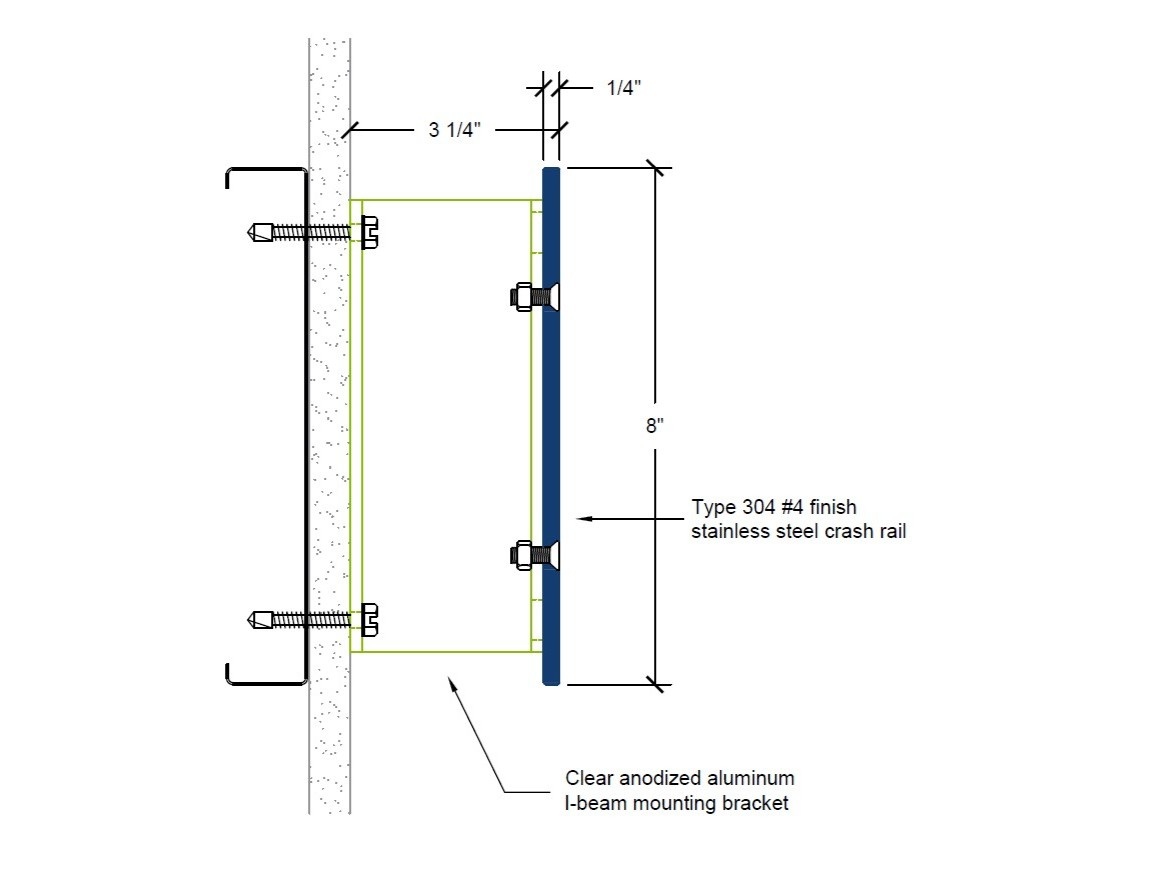

      CRS-120 | 8-inch profile

      No custom options are available for this product.

        Note: You may upload only one PDF file (2MB file size).

        Click to browse
        or drag and drop your files


        Clear

        • SKU#:

          CRS-130

        • Material:

          1/4-inch type 304 #4 satin finish stainless steel rail with anodized aluminum I-beam mounting brackets

        • Mounting Options:

          Mechanical fasteners (by others)

        • Profile:

          12-inch height x 3 1/4-inch depth

        • More Info:

          CRS-130 is custom-fabricated to field verified dimensions with factory formed corners and returns. Custom profiles available. Other stainless steel grades and finishes available.

        CRS-130 Custom-Fabricated Lengths

        CRS-130 Custom-Fabricated Lengths

        All CRS-130 crash rail is pre-cut, pre-formed, and pre-drilled at the factory and should require no further modification.

        CRS-130

        Select the files that you want to download and click “Download” to get the files.

        Cleaning-maintenance

        pdf

        Cad-drawing

        dwg

        Installation-instructions

        pdf

        Roll over a color or texture sample to view a larger swatch.

        Click the colors or textures required for your swatch request.

        Stainless Steel

        #4 finish

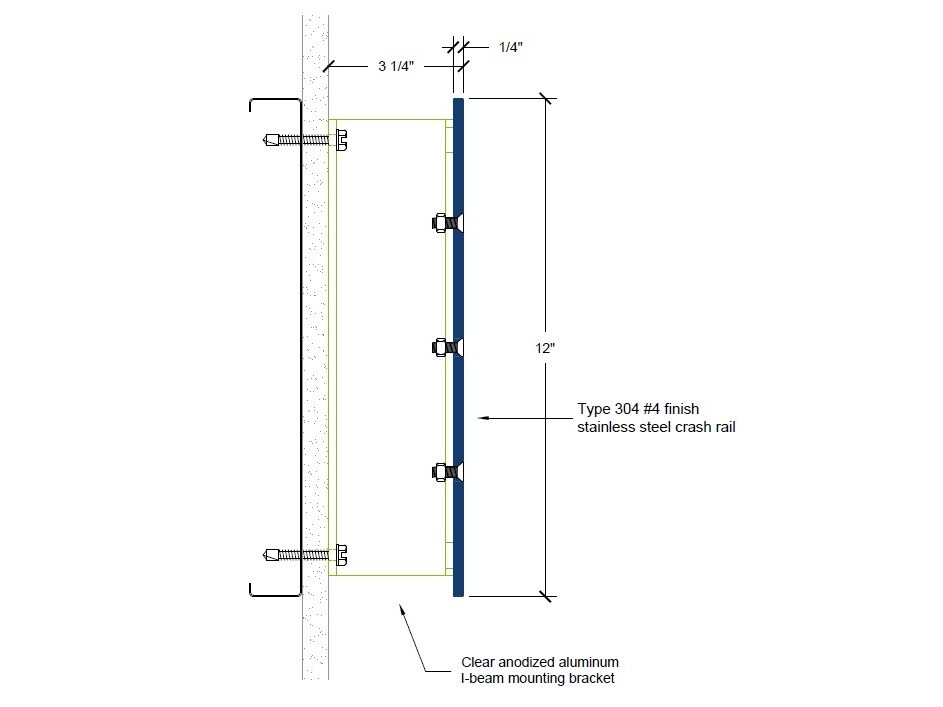

        CRS-130 | 12-inch profile
