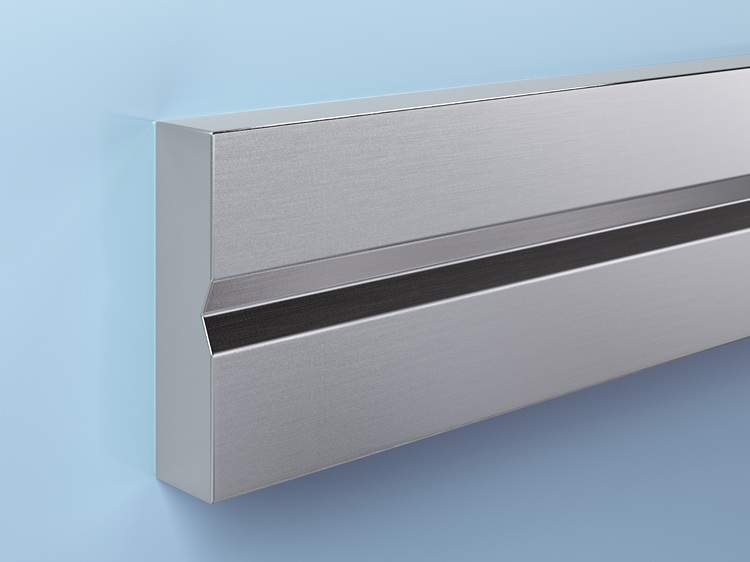

CRS-200W Welded Stainless Steel Crash Rail

Stainless steel crash rail with center V-groove and seamless welded ends that mounts to the wall with stainless steel brackets.

See available product options

CRS-200W welded stainless steel crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. The CRS-200W series crash rail consists of stainless steel rails with a center V-groove
profile that fastens to the wall with hidden stainless steel mounting brackets. The end points of each crash rail segment are welded closed creating a solid and seamless piece that is easy to keep clean. CRS-200W crash rails are
supplied in custom-fabricated lengths, which means no field modification is required prior to installation. Choose from several standard options below or inquire about custom options that meet your
specific project requirements.

Features:

  • Manufactured from 16ga type 304 #4 satin finish stainless steel
  • Seamless welded ends
  • Standard and custom profiles available
  • Other stainless steel grades and finishes available

Available options

  • SKU#:

    CRS-200W

  • Material:

    16ga type 304 #4 satin finish stainless steel rail with stainless steel mounting brackets

  • Mounting Options:

    Mechanical fasteners (by others)

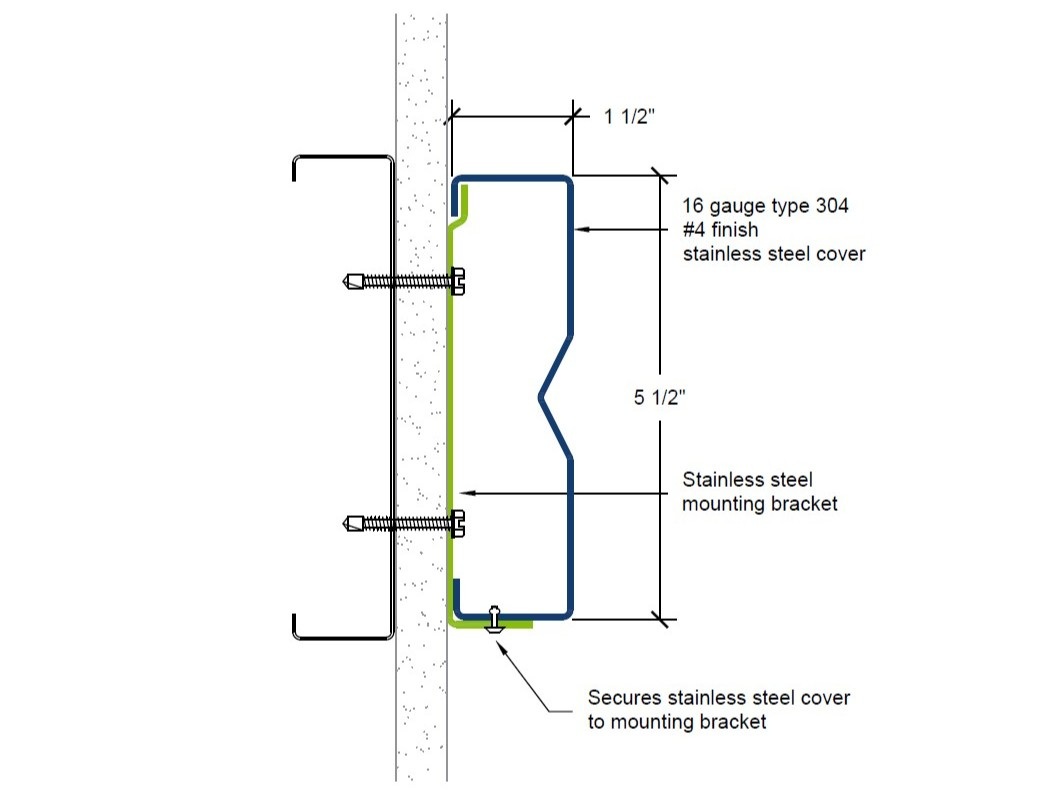

  • Profile:

    5 1/2-inch height x 1 1/2-inch depth

  • More Info:

    CRS-200W is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available.

CRBS-200 Standard Bracket

CRBS-200 Standard Bracket

Secures crash rail to wall. Spacing should not exceed 32-inches on center.

CRBS-200
SPL-200 Splice Bracket

SPL-200 Splice Bracket

Secures CRS-200 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.

SPL-200
CRS-200W Custom-Fabricated Lengths

CRS-200W Custom-Fabricated Lengths

All CRS-200W crash rail is pre-cut and welded at the factory and should require no further modification.

CRS-200W

Select the files that you want to download and click “Download” to get the files.

Cleaning-maintenance

pdf

Cad-drawing

dwg

Installation-instructions

pdf

Roll over a color or texture sample to view a larger swatch.

Click the colors or textures required for your swatch request.

Stainless Steel

#4 finish

CRS-200W | 5 1/2-inch profile

No custom options are available for this product.

    Note: You may upload only one PDF file (2MB file size).

    Click to browse
    or drag and drop your files


    Clear

    • SKU#:

      CRS-800W

    • Material:

      16ga type 304 #4 satin finish stainless steel rail with stainless steel mounting brackets

    • Mounting Options:

      Mechanical fasteners (by others)

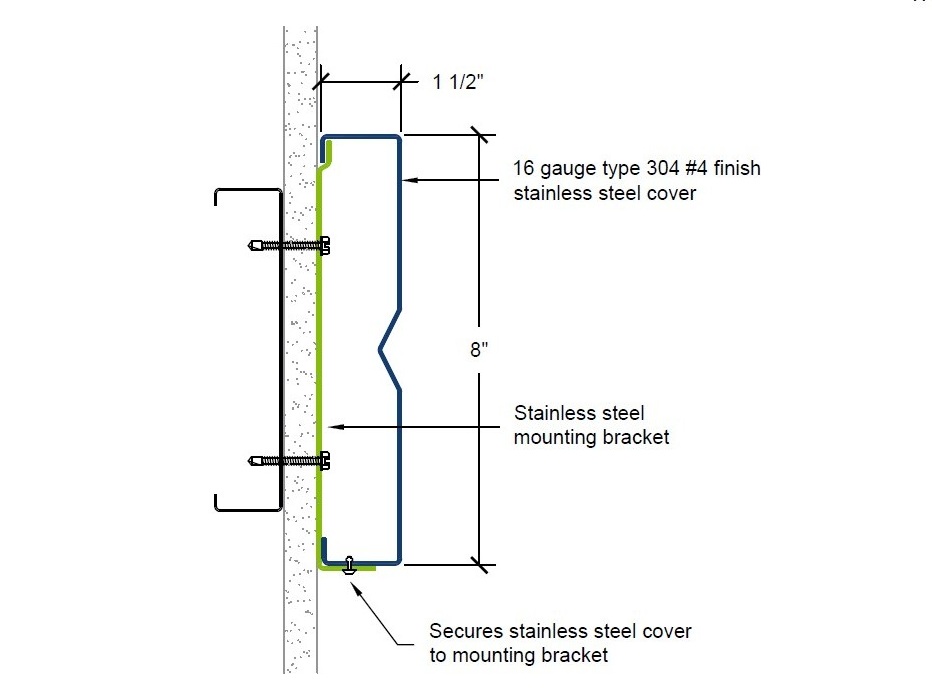

    • Profile:

      8-inch height x 1 1/2-inch depth

    • More Info:

      CRS-800W is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available.

    CRBS-800 Standard Bracket

    CRBS-800 Standard Bracket

    Secures CRS-800 crash rail to wall. Spacing should not exceed 32-inches on center.

    CRBS-800
    SPL-800 Splice Bracket

    SPL-800 Splice Bracket

    Secures CRS-800 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.

    SPL-800
    CRS-800W Custom-Fabricated Lengths

    CRS-800W Custom-Fabricated Lengths

    All CRS-800W crash rail is pre-cut and welded at the factory and should require no further modification.

    CRS-800W

    Select the files that you want to download and click “Download” to get the files.

    Cleaning-maintenance

    pdf

    Cad-drawing

    dwg

    Installation-instructions

    pdf

    Roll over a color or texture sample to view a larger swatch.

    Click the colors or textures required for your swatch request.

    Stainless Steel

    #4 finish

    CRS-800W | 8-inch profile

    No custom options are available for this product.

      Note: You may upload only one PDF file (2MB file size).

      Click to browse
      or drag and drop your files


      Clear

      • SKU#:

        CRS-1000W

      • Material:

        16ga type 304 #4 satin finish stainless steel rail with stainless steel mounting brackets

      • Mounting Options:

        Mechanical fasteners (by others)

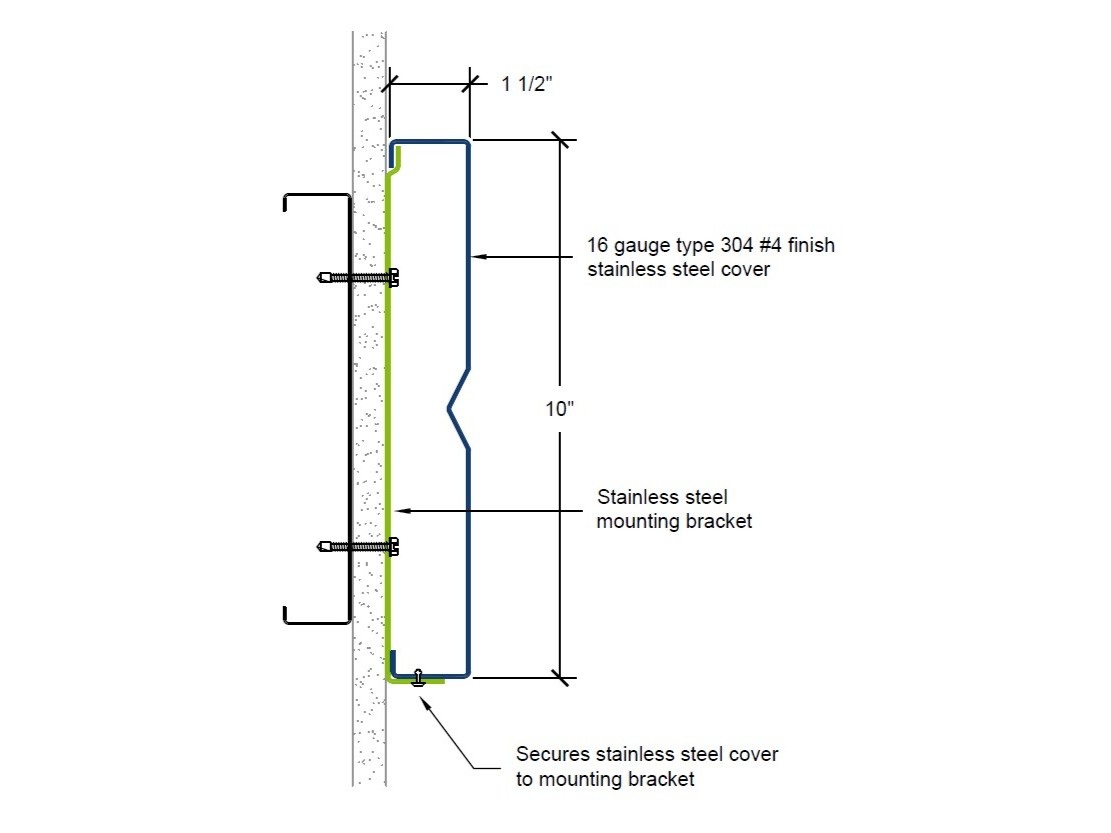

      • Profile:

        10-inch height x 1 1/2-inch depth

      • More Info:

        CRS-1000W is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available.

      CRBS-1000 Standard Bracket

      CRBS-1000 Standard Bracket

      Secures CRS-1000 crash rail to wall. Spacing should not exceed 32-inches on center.

      CRBS-1000
      SPL-1000 Splice Bracket

      SPL-1000 Splice Bracket

      Secures CRS-1000 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.

      SPL-1000
      CRS-1000W Custom-Fabricated Lengths

      CRS-1000W Custom-Fabricated Lengths

      All CRS-1000W crash rail is pre-cut and welded at the factory and should require no further modification.

      CRS-1000W

      Select the files that you want to download and click “Download” to get the files.

      Cleaning-maintenance

      pdf

      Cad-drawing

      dwg

      Installation-instructions

      pdf

      Roll over a color or texture sample to view a larger swatch.

      Click the colors or textures required for your swatch request.

      Stainless Steel

      #4 finish

      CRS-1000W | 10-inch profile

      No custom options are available for this product.

        Note: You may upload only one PDF file (2MB file size).

        Click to browse
        or drag and drop your files


        Clear

        • SKU#:

          CRS-1200W

        • Material:

          16ga type 304 #4 satin finish stainless steel rail with stainless steel mounting brackets

        • Mounting Options:

          Mechanical fasteners (by others)

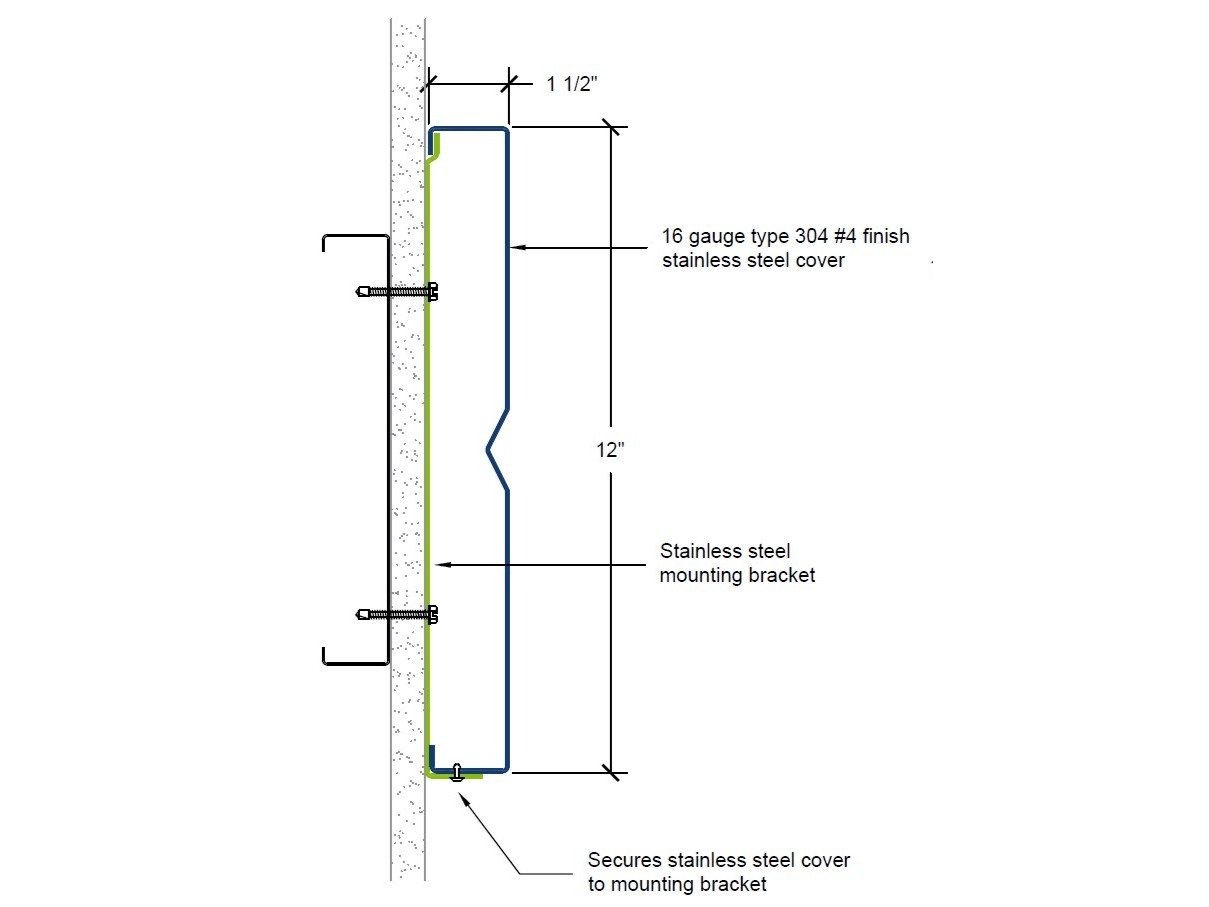

        • Profile:

          12-inch height x 1 1/2-inch depth

        • More Info:

          CRS-1200W is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available.

        CRBS-1200 Standard Bracket

        CRBS-1200 Standard Bracket

        Secures CRS-1200 crash rail to wall. Spacing should not exceed 32-inches on center.

        CRBS-1200
        SPL-1200 Splice Bracket

        SPL-1200 Splice Bracket

        Secures CRS-1200 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.

        SPL-1200
        CRS-1200W Custom-Fabricated Lengths

        CRS-1200W Custom-Fabricated Lengths

        All CRS-1200W crash rail is pre-cut and welded at the factory and should require no further modification.

        CRS-1200W

        Select the files that you want to download and click “Download” to get the files.

        Cleaning-maintenance

        pdf

        Cad-drawing

        dwg

        Installation-instructions

        pdf

        Roll over a color or texture sample to view a larger swatch.

        Click the colors or textures required for your swatch request.

        Stainless Steel

        #4 finish

        CRS-1200W | 12-inch profile

        No custom options are available for this product.
