CRS-4SSW Welded Stainless Steel Crash Rail

Stainless steel crash rail with a flat face profile and seamless welded ends that mounts to the wall with a continuous wood retainer.

See available product options

CRS-4SSW welded stainless steel crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. The CRS-4SSW series crash rail consists of stainless steel rails with a flat face profile that fastens to the wall with a continuous wood retainer. The end points of each crash rail segment are welded closed creating a solid and seamless piece that is easy to keep clean. CRS-4SSW crash rails are supplied in custom-fabricated lengths, which means no field modification is required prior to installation. Choose from several standard options below or inquire about custom options that meet your specific project requirements.<

Features:

  • Manufactured from 16ga type 304 #4 satin finish stainless steel
  • Seamless welded ends
  • Standard and custom profiles available
  • Other stainless steel grades and finishes available
  • Other continuous retainer options available

Available options

  • SKU#:

    CRS-4SSW

  • Material:

    16ga type 304 #4 satin finish stainless steel rail with continuous wood retainer

  • Mounting Options:

    Mechanical fasteners (by others)

  • Profile:

    4-inch height x 1 1/16-inch depth

  • More Info:

    CRS-4SSW is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

CRS-4SSW Custom-Fabricated Lengths

CRS-4SSW Custom-Fabricated Lengths

All CRS-4SSW crash rail is pre-cut, welded, and pre-drilled at the factory and should require no further modification.

CRS-4SSW

Select the files that you want to download and click “Download” to get the files.

Cleaning-maintenance

pdf

Cad-drawing

dwg

Installation-instructions

pdf

Roll over a color or texture sample to view a larger swatch.

Click the colors or textures required for your swatch request.

Stainless Steel

#4 finish

CRS-4SSW | 4-inch profile

No custom options are available for this product.

    Note: You may upload only one PDF file (2MB file size).

    Click to browse
    or drag and drop your files


    Clear

    • SKU#:

      CRS-55SSW

    • Material:

      16ga type 304 #4 satin finish stainless steel rail with continuous wood retainer

    • Mounting Options:

      Mechanical fasteners (by others)

    • Profile:

      5 1/2-inch height x 1 1/16-inch depth

    • More Info:

      CRS-55SSW is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

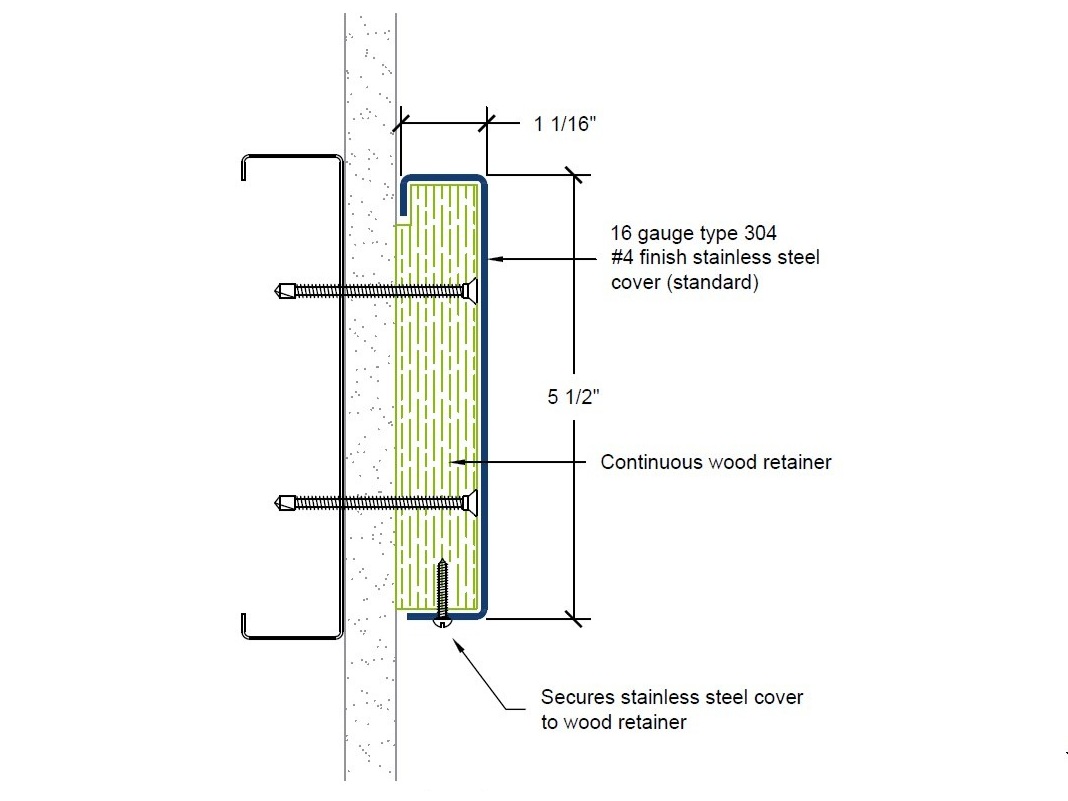

    CRS-55SSW Custom-Fabricated Lengths

    CRS-55SSW Custom-Fabricated Lengths

    All CRS-55SSW crash rail is pre-cut, welded, and pre-drilled at the factory and should require no further modification.

    CRS-55SSW

    Select the files that you want to download and click “Download” to get the files.

    Cleaning-maintenance

    pdf

    Cad-drawing

    dwg

    Installation-instructions

    pdf

    Roll over a color or texture sample to view a larger swatch.

    Click the colors or textures required for your swatch request.

    Stainless Steel

    #4 finish

    CRS-55SSW | 5 1/2-inch profile

    No custom options are available for this product.

      Note: You may upload only one PDF file (2MB file size).

      Click to browse
      or drag and drop your files


      Clear

      • SKU#:

        CRS-8SSW

      • Material:

        16ga type 304 #4 satin finish stainless steel rail with continuous wood retainer

      • Mounting Options:

        Mechanical fasteners (by others)

      • Profile:

        8-inch height x 1 1/16-inch depth

      • More Info:

        CRS-8SSW is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

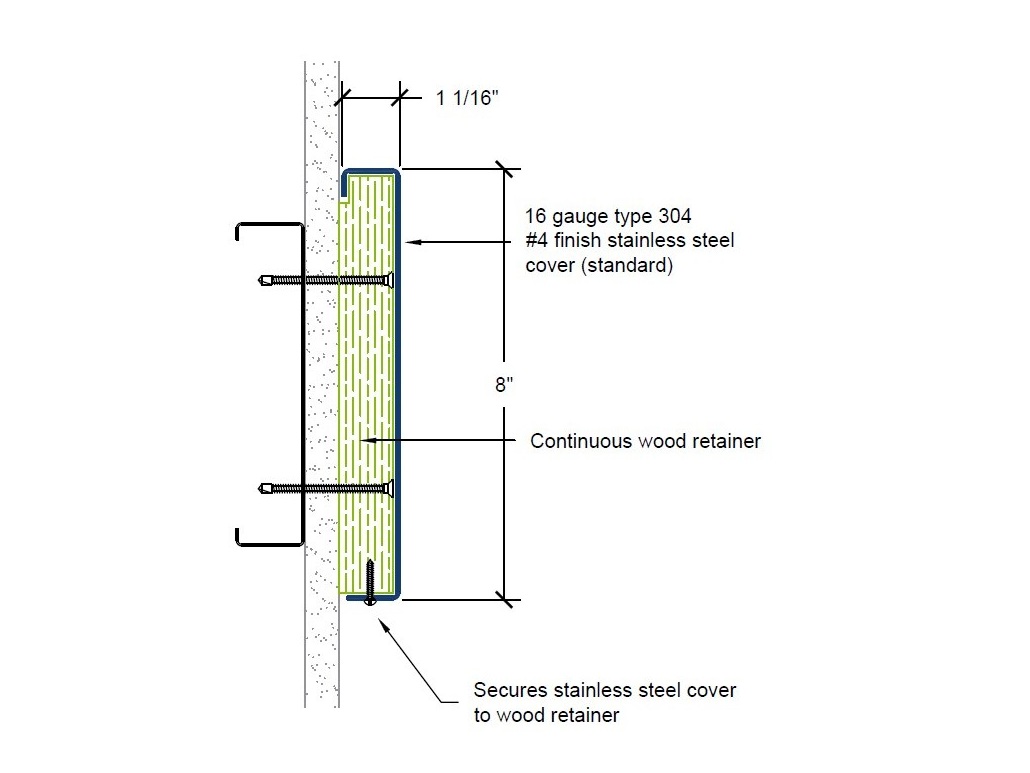

      CRS-8SSW Custom-Fabricated Lengths

      CRS-8SSW Custom-Fabricated Lengths

      All CRS-8SSW crash rail is pre-cut, welded, and pre-drilled at the factory and should require no further modification.

      CRS-8SSW

      Select the files that you want to download and click “Download” to get the files.

      Cleaning-maintenance

      pdf

      Cad-drawing

      dwg

      Installation-instructions

      pdf

      Roll over a color or texture sample to view a larger swatch.

      Click the colors or textures required for your swatch request.

      Stainless Steel

      #4 finish

      CRS-8SSW | 8-inch profile

      No custom options are available for this product.

        Note: You may upload only one PDF file (2MB file size).

        Click to browse
        or drag and drop your files


        Clear

        • SKU#:

          CRS-8SSW

        • Material:

          16ga type 304 #4 satin finish stainless steel rail with continuous wood retainer

        • Mounting Options:

          Mechanical fasteners (by others)

        • Profile:

          8-inch height x 1 1/16-inch depth

        • More Info:

          CRS-8SSW is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

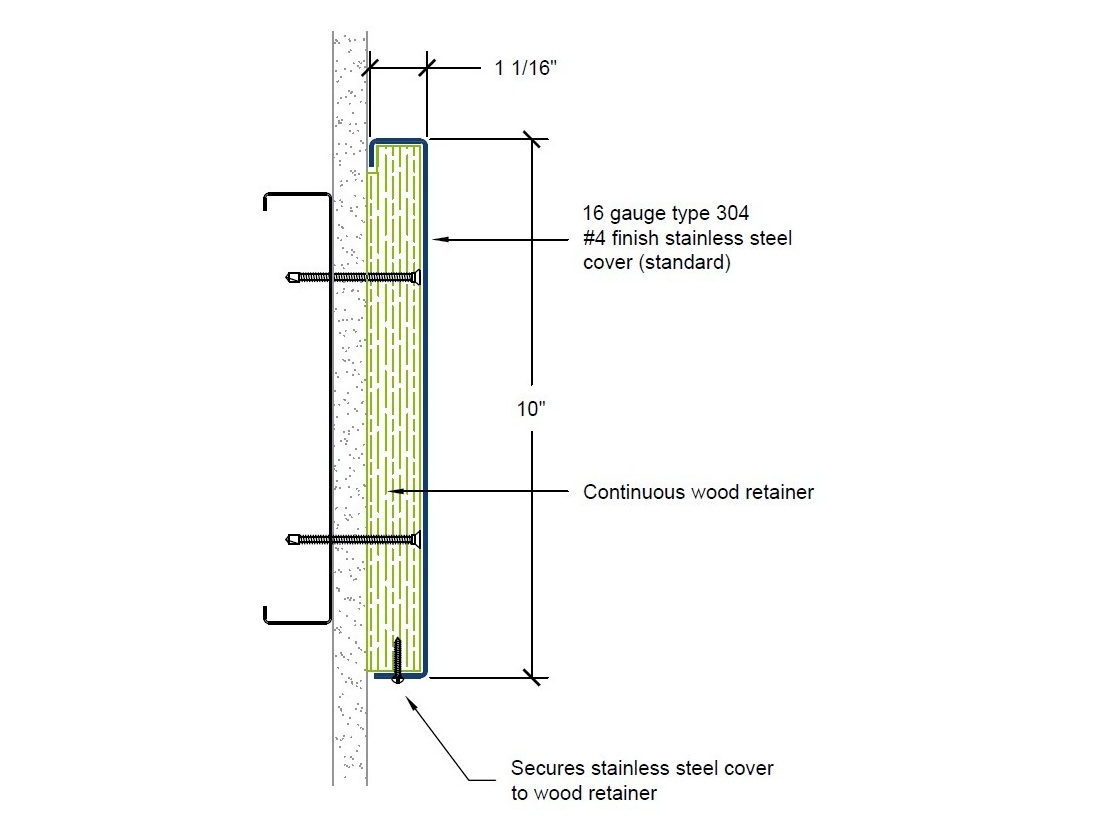

        CRS-10SSW Custom-Fabricated Lengths

        CRS-10SSW Custom-Fabricated Lengths

        All CRS-10SSW crash rail is pre-cut, welded, and pre-drilled at the factory and should require no further modification.

        CRS-10SSW

        Select the files that you want to download and click “Download” to get the files.

        Cleaning-maintenance

        pdf

        Cad-drawing

        dwg

        Installation-instructions

        pdf

        Roll over a color or texture sample to view a larger swatch.

        Click the colors or textures required for your swatch request.

        Stainless Steel

        #4 finish

        CRS-10SSW | 10-inch profile

        No custom options are available for this product.

          Note: You may upload only one PDF file (2MB file size).

          Click to browse
          or drag and drop your files


          Clear

          • SKU#:

            CRS-8SSW

          • Material:

            16ga type 304 #4 satin finish stainless steel rail with continuous wood retainer

          • Mounting Options:

            Mechanical fasteners (by others)

          • Profile:

            8-inch height x 1 1/16-inch depth

          • More Info:

            CRS-8SSW is supplied in custom lengths with seamless welded ends. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

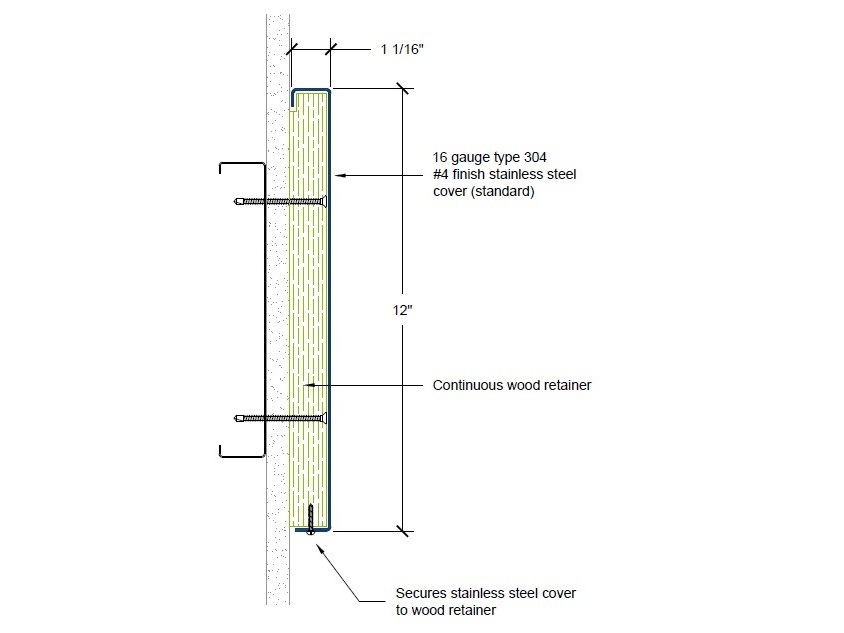

          CRS-12SSW Custom-Fabricated Lengths

          CRS-12SSW Custom-Fabricated Lengths

          All CRS-12SSW crash rail is pre-cut, welded, and pre-drilled at the factory and should require no further modification.

          CRS-12SSW

          Select the files that you want to download and click “Download” to get the files.

          Cleaning-maintenance

          pdf

          Cad-drawing

          dwg

          Installation-instructions

          pdf

          Roll over a color or texture sample to view a larger swatch.

          Click the colors or textures required for your swatch request.

          Stainless Steel

          #4 finish

          CRS-12SSW | 12-inch profile
