CRSC-200 Colored Stainless Steel Crash Rail
Colored stainless steel crash rail with center V-groove that mounts to the wall with stainless steel brackets.
CRSC-200 colored stainless steel crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. Colored stainless steel adds visual appeal and allows for more design options. The CRSC-200 series crash rail consists of colored stainless steel rails with a center V-groove profile that fastens to the wall with hidden stainless steel mounting brackets. The end points of each crash rail segment are capped with end plates that fasten to the mounting brackets. CRSC-200 crash rails are custom-fabricated per field verified dimensions, which means no field modification is required prior to installation. Choose from several standard sizes and color options below or inquire about custom options that meet your specific project requirements.
Features:
- Manufactured from Type 304 #4 satin finish colored stainless steel
- Standard and custom profiles available
- Other stainless steel grades and finishes available
Available options
-
SKU#:
CRSC-200
-
Material:
Type 304 #4 satin finish colored stainless steel rail with stainless steel mounting brackets
-
Mounting Options:
Mechanical fasteners (by others)
-
Profile:
5 1/2-inch height x 1 1/2-inch depth
-
More Info:
CRSC-200 is custom-fabricated to field verified dimensions. Custom profiles available. Other stainless steel grades and finishes available.
CRBS-200 Standard Bracket
Secures crash rail to wall. Spacing should not exceed 32-inches on center.
CRBSE-200 End Plate Bracket
Secures crash rail to wall. Install end plate brackets at crash rail end points to allow for end plate attachment.
SPL-200 Splice Bracket
Secures CRS-200 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.
CRSC-200 Custom-Fabricated Lengths
All CRSC-200 crash rail is custom-fabricated at the factory per field measurements so that no field cutting is required.
ECSC-200 End Plates
End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes. Available in colored stainless steel. Other finishes also available.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline
CRSC-200 | 5 1/2-inch profile
No custom options are available for this product.
-
SKU#:
CRSC-800
-
Material:
Type 304 #4 satin finish colored stainless steel rail with stainless steel mounting brackets
-
Mounting Options:
Mechanical fasteners (by others)
-
Profile:
8-inch height x 1 1/2-inch depth
-
More Info:
CRSC-800 is custom-fabricated to field verified dimensions. Custom profiles available. Other stainless steel grades and finishes available.
CRBS-800 Standard Bracket
Secures CRS-800 crash rail to wall. Spacing should not exceed 32-inches on center.
CRBSE-800 End Plate Bracket
Secures CRS-800 crash rail to wall. Install end plate brackets at crash rail end points to allow for end plate attachment.
SPL-800 Splice Bracket
Secures CRS-800 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.
CRSC-800 Custom-Fabricated Lengths
All CRSC-800 crash rail is custom-fabricated at the factory per field measurements so that no field cutting is required.
ECSC-800 End Plates
End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes. Available in colored stainless steel. Other finishes also available.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

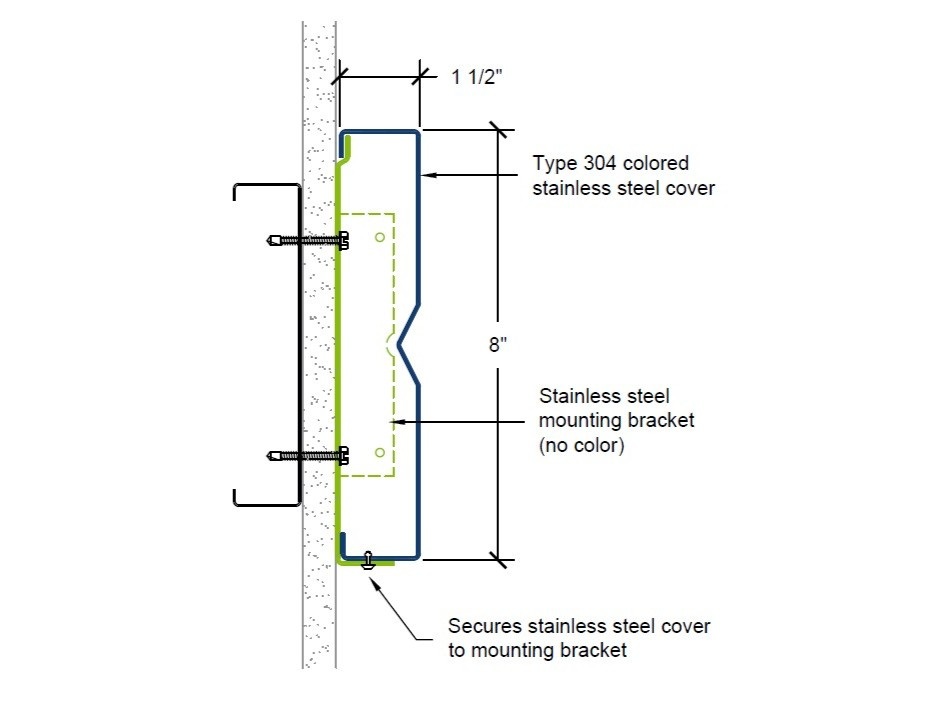

CRSC-800 | 8-inch profile
No custom options are available for this product.
-
SKU#:
CRSC-1000
-
Material:
Type 304 #4 satin finish colored stainless steel rail with stainless steel mounting brackets
-
Mounting Options:
Mechanical fasteners (by others)
-
Profile:
10-inch height x 1 1/2-inch depth
-
More Info:
CRSC-1000 is custom-fabricated to field verified dimensions. Custom profiles available. Other stainless steel grades and finishes available.
CRBS-1000 Standard Bracket
Secures CRS-1000 crash rail to wall. Spacing should not exceed 32-inches on center.
CRBSE-1000 End Plate Bracket
Secures CRS-1000 crash rail to wall. Install end plate brackets at crash rail end points to allow for end plate attachment.
SPL-1000 Splice Bracket
Secures CRS-1000 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.
CRSC-1000 Custom-Fabricated Lengths
All CRSC-1000 crash rail is custom-fabricated at the factory per field measurements so that no field cutting is required.
ECSC-1000 End Plates
End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes. Available in colored stainless steel. Other finishes also available.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

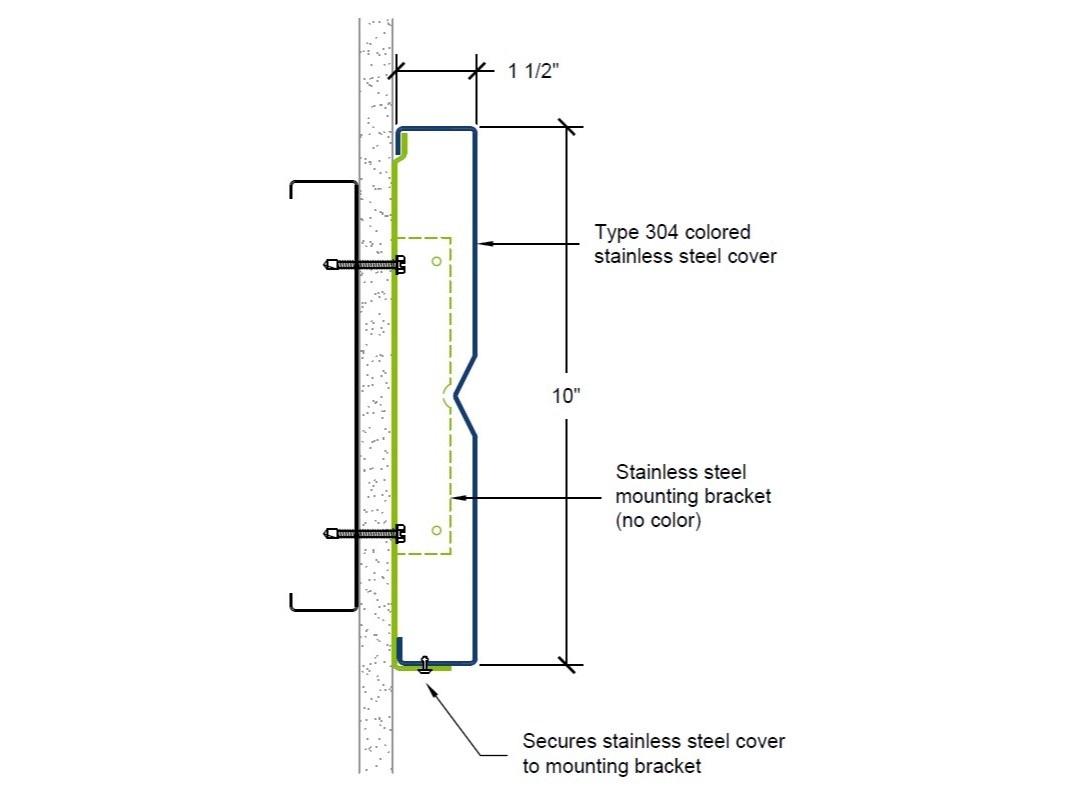

CRSC-1000 | 10-inch profile
No custom options are available for this product.
-
SKU#:
CRSC-1200
-
Material:
Type 304 #4 satin finish colored stainless steel rail with stainless steel mounting brackets
-
Mounting Options:
Mechanical fasteners (by others)
-
Profile:
12-inch height x 1 1/2-inch depth
-
More Info:
CRSC-1200 is custom-fabricated to field verified dimensions. Custom profiles available. Other stainless steel grades and finishes available.
CRBS-1200 Standard Bracket
Secures CRS-1200 crash rail to wall. Spacing should not exceed 32-inches on center.
CRBSE-1200 End Plate Bracket
Secures CRS-1200 crash rail to wall. Install end plate brackets at crash rail end points to allow for end plate attachment.
ECS-1200 End Plates
End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes.
CRSC-1200 Custom-Fabricated Lengths
All CRSC-1200 crash rail is custom-fabricated at the factory per field measurements so that no field cutting is required.
ECSC-1200 End Plates
End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes. Available in colored stainless steel. Other finishes also available.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

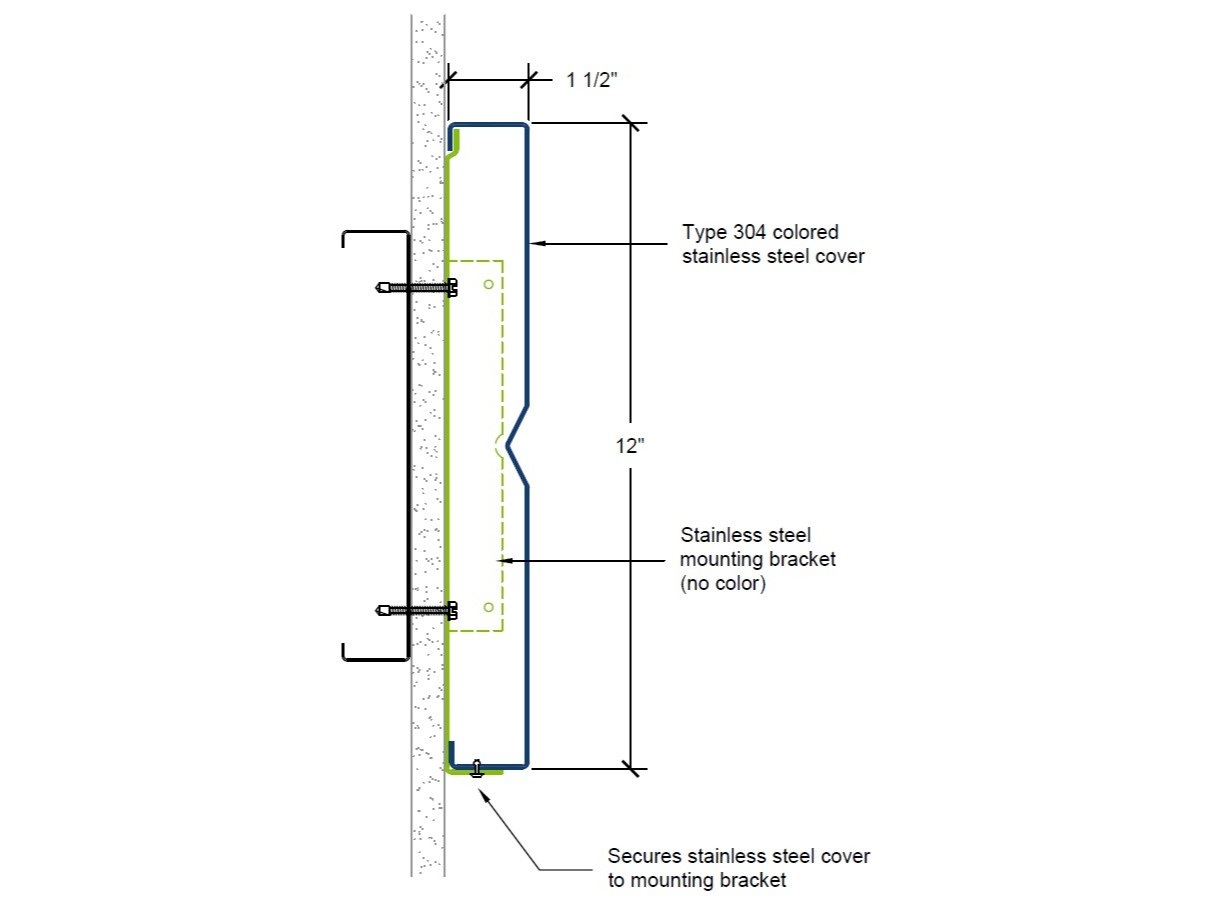

CRSC-1200 | 12-inch profile
No custom options are available for this product.
