CRSP-200 Patterned Stainless Steel Crash Rail

Patterned stainless steel crash rail with center V-groove that mounts to the wall with stainless steel brackets.

See available product options

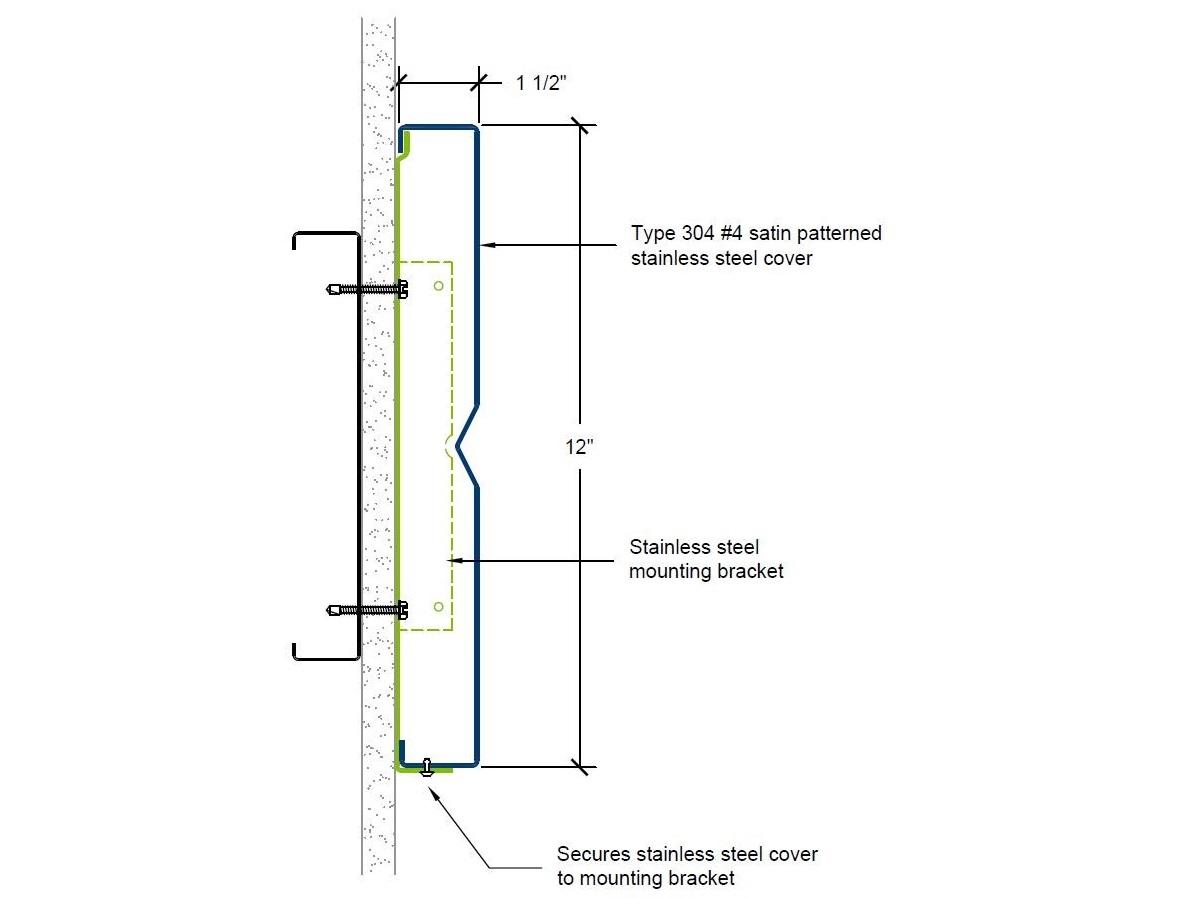

CRSP-200 patterned stainless steel crash rails protect walls from impact caused by moving carts, equipment, and pedestrian traffic. Patterned stainless steel adds visual appeal and it increases protection against abrasion. The CRSP-200 series crash rail consists of patterned stainless steel rails with a center V-groove profile that fastens to the wall with hidden stainless steel mounting brackets. The end points of each crash rail segment are capped with end plates that fasten to the mounting brackets. CRSP-200 crash rails are supplied in standard lengths and cut to fit in the field by installers, which means no prior field measuring is required. Choose from several standard options below or inquire about custom options that meet your specific project requirements.

Features:

  • Manufactured from Type 304 #4 satin finish patterned stainless steel
  • Standard and custom profiles available
  • Other stainless steel grades and finishes available

Available options

  • Material:

    Type 304 #4 satin finish patterned stainless steel rail with stainless steel mounting brackets

  • Mounting Options:

    Mechanical fasteners (by others)

  • Profile:

    5 1/2-inch height x 1 1/2-inch depth

  • More Info:

    CRSP-200 is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available.

CRBS-200 Standard Bracket

CRBS-200 Standard Bracket

Secures crash rail to wall. Spacing should not exceed 32-inches on center.

CRBS-200
CRBSE-200 End Plate Bracket

CRBSE-200 End Plate Bracket

Secures crash rail to wall. Install end plate brackets at crash rail end points to allow for end plate attachment.

CRBSE-200
SPL-200 Splice Bracket

SPL-200 Splice Bracket

Secures CRS-200 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.

SPL-200
ECS-200 End Plates

ECS-200 End Plates

End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes.

ECS-200
CRSP-200 Standard Lengths

CRSP-200 Standard Lengths

CRSP-200 crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

CRSP-200

Select the files that you want to download and click “Download” to get the files.

Cleaning-maintenance

pdf

Installation-instructions

pdf

Cad-drawing

dwg

Roll over a color or texture sample to view a larger swatch.

Click the colors or textures required for your swatch request.

Patterned Stainless Steel

5-SM
6-OM
Cambridge
Hammertone
Leathergrain
Oxford
Quilted
Stucco
TreadTex
Woodgrain

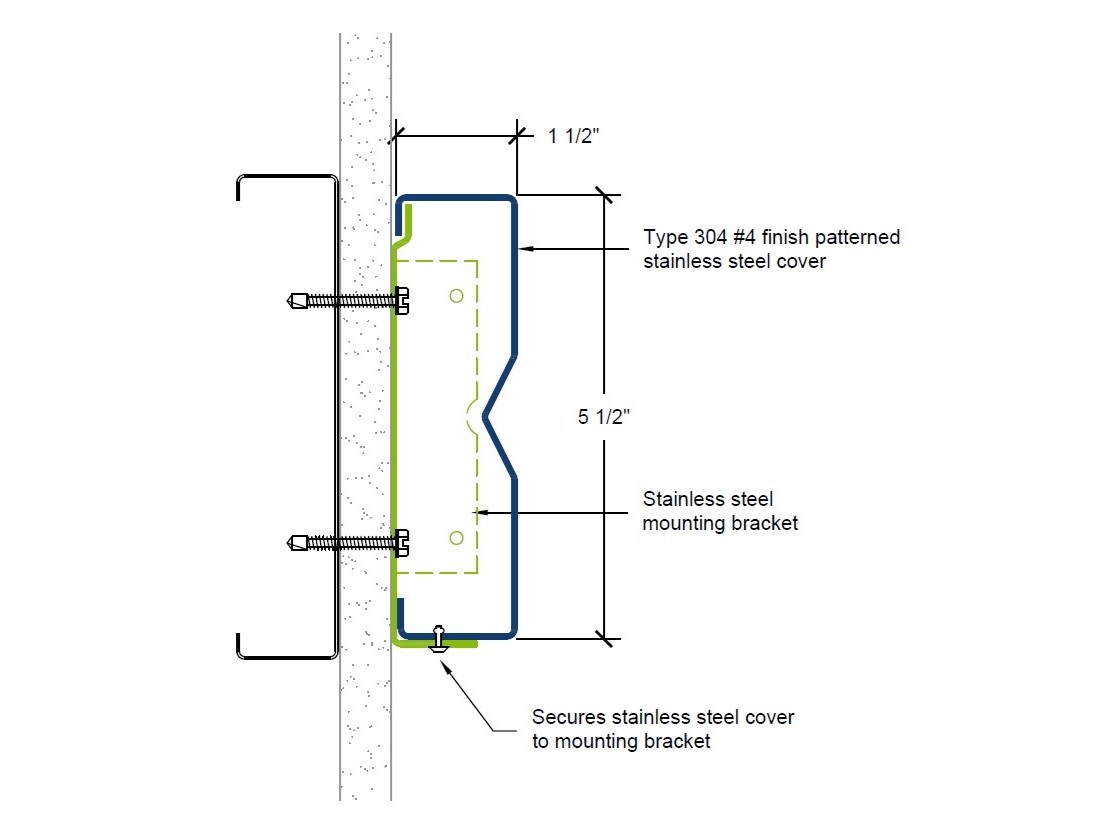

CRSP-200 | 5 1/2-inch profile

No custom options are available for this product.

    Note: You may upload only one PDF file (2MB file size).

    Click to browse
    or drag and drop your files


    Clear

    • SKU#:

      CRSP-800

    • Material:

      Type 304 #4 satin finish patterned stainless steel rail with stainless steel mounting brackets

    • Mounting Options:

      Mechanical fasteners (by others)

    • Profile:

      8-inch height x 1 1/2-inch depth

    • More Info:

      CRSP-800 is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available.

    CRBS-800 Standard Bracket

    CRBS-800 Standard Bracket

    Secures CRS-800 crash rail to wall. Spacing should not exceed 32-inches on center.

    CRBS-800
    CRBSE-800 End Plate Bracket

    CRBSE-800 End Plate Bracket

    Secures CRS-800 crash rail to wall. Install end plate brackets at crash rail end points to allow for end plate attachment.

    CRBSE-800
    SPL-800 Splice Bracket

    SPL-800 Splice Bracket

    Secures CRS-800 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.

    SPL-800
    ECS-800 End Plates

    ECS-800 End Plates

    End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes.

    ECS-800
    CRSP-800 Standard Lengths

    CRSP-800 Standard Lengths

    CRSP-800 crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

    CRSP-800

    Select the files that you want to download and click “Download” to get the files.

    Cleaning-maintenance

    pdf

    Installation-instructions

    pdf

    Cad-drawing

    dwg

    Roll over a color or texture sample to view a larger swatch.

    Click the colors or textures required for your swatch request.

    Patterned Stainless Steel

    5-SM
    6-OM
    Cambridge
    Hammertone
    Leathergrain
    Oxford
    Quilted
    Stucco
    TreadTex
    Woodgrain

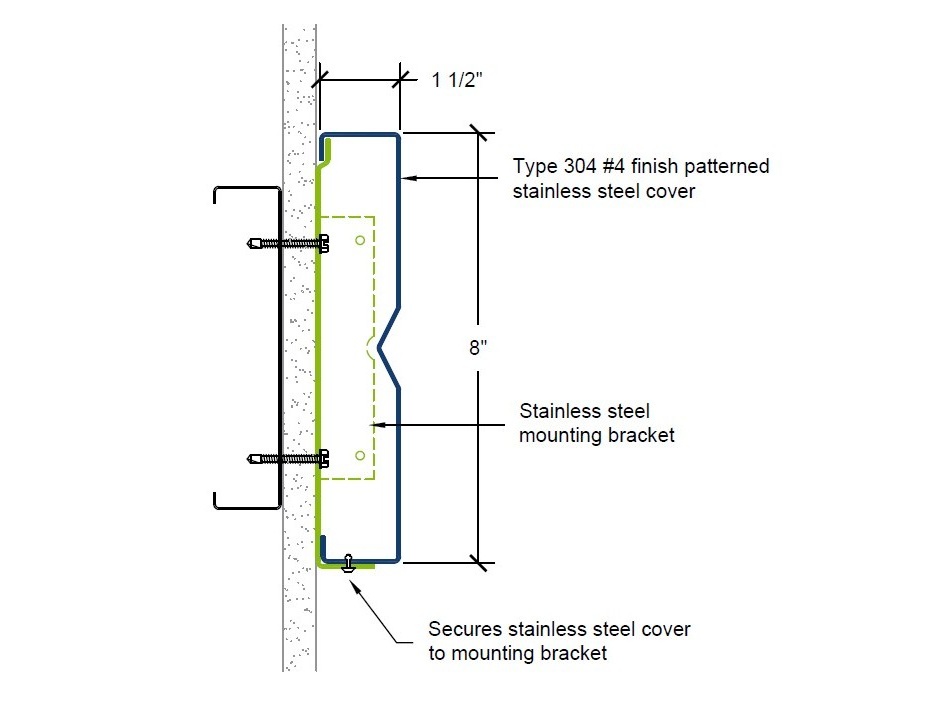

    CRSP-800 | 8-inch profile

    No custom options are available for this product.

      Note: You may upload only one PDF file (2MB file size).

      Click to browse
      or drag and drop your files


      Clear

      • SKU#:

        CRSP-1000

      • Material:

        Type 304 #4 satin finish patterned stainless steel rail with stainless steel mounting brackets

      • Mounting Options:

        Mechanical fasteners (by others)

      • Profile:

        510-inch height x 1 1/2-inch depth

      • More Info:

        CRSP-1000 is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available.

      CRBS-1000 Standard Bracket

      CRBS-1000 Standard Bracket

      Secures CRS-1000 crash rail to wall. Spacing should not exceed 32-inches on center.

      CRBS-1000
      CRBSE-1000 End Plate Bracket

      CRBSE-1000 End Plate Bracket

      Secures CRS-1000 crash rail to wall. Install end plate brackets at crash rail end points to allow for end plate attachment.

      CRBSE-1000
      SPL-1000 Splice Bracket

      SPL-1000 Splice Bracket

      Secures CRS-1000 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.

      SPL-1000
      ECS-1000 End Plates

      ECS-1000 End Plates

      End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes.

      ECS-1000
      CRSP-1000 Standard Lengths

      CRSP-1000 Standard Lengths

      CRSP-1000 crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

      CRSP-1000

      Select the files that you want to download and click “Download” to get the files.

      Cleaning-maintenance

      pdf

      Installation-instructions

      pdf

      Cad-drawing

      dwg

      Roll over a color or texture sample to view a larger swatch.

      Click the colors or textures required for your swatch request.

      Patterned Stainless Steel

      5-SM
      6-OM
      Cambridge
      Hammertone
      Leathergrain
      Oxford
      Quilted
      Stucco
      TreadTex
      Woodgrain

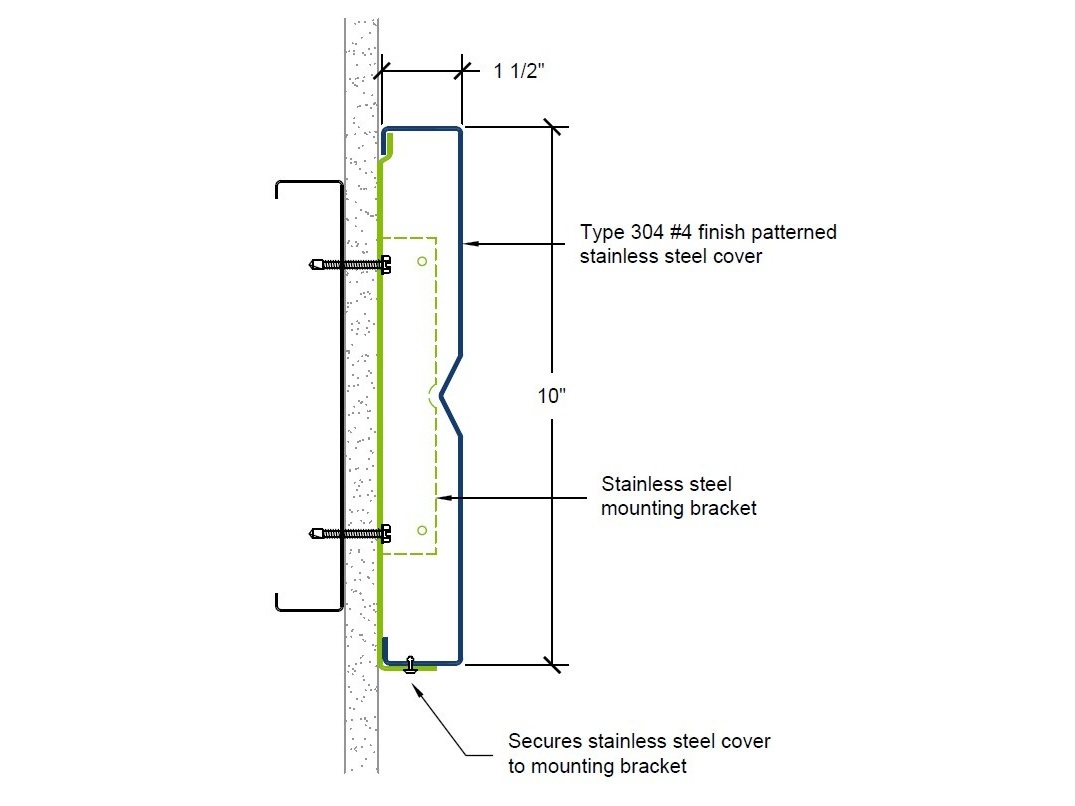

      CRSP-1000 | 10-inch profile

      No custom options are available for this product.

        Note: You may upload only one PDF file (2MB file size).

        Click to browse
        or drag and drop your files


        Clear

        • SKU#:

          CRSP-1200

        • Material:

          Type 304 #4 satin finish patterned stainless steel rail with stainless steel mounting brackets

        • Standard Sizes:

          Mechanical fasteners (by others)

        • Profile:

          12-inch height x 1 1/2-inch depth

        • More Info:

          CRSP-1200 is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available.

        CRBS-1200 Standard Bracket

        CRBS-1200 Standard Bracket

        Secures CRS-1200 crash rail to wall. Spacing should not exceed 32-inches on center.

        CRBS-1200
        CRBSE-1200 End Plate Bracket

        CRBSE-1200 End Plate Bracket

        Secures CRS-1200 crash rail to wall. Install end plate brackets at crash rail end points to allow for end plate attachment.

        CRBSE-1200
        SPL-1200 Splice Bracket

        SPL-1200 Splice Bracket

        Secures CRS-1200 crash rail to wall. Install 3-inch splice brackets centered at each crash rail splice.

        SPL-1200
        ECS-1200 End Plates

        ECS-1200 End Plates

        End plates cap the end points of each crash rail segment. End plates secure to end plates brackets with fasteners through pre-drilled countersunk holes.

        ECS-1200
        CRSP-1200 Standard Lengths

        CRSP-1200 Standard Lengths

        CRSP-1200 crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

        CRSP-1200

        Select the files that you want to download and click “Download” to get the files.

        Cleaning-maintenance

        pdf

        Installation-instructions

        pdf

        Cad-drawing

        dwg

        Roll over a color or texture sample to view a larger swatch.

        Click the colors or textures required for your swatch request.

        Patterned Stainless Steel

        5-SM
        6-OM
        Cambridge
        Hammertone
        Leathergrain
        Oxford
        Quilted
        Stucco
        TreadTex
        Woodgrain

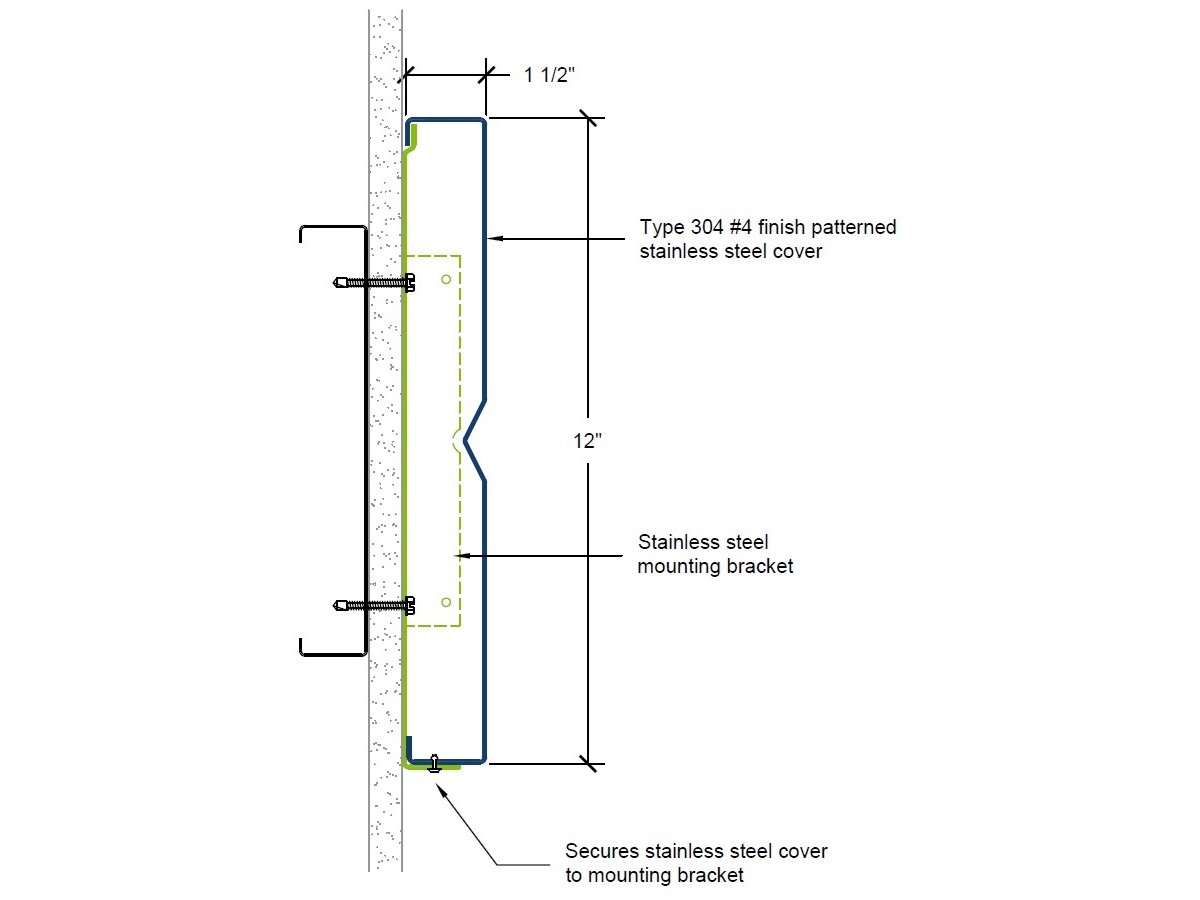

        CRSP-1200 | 12-inch profile
