Flush-Mount Colored SS End Wall Guards
Colored stainless steel end wall guards that install directly to studs to create a flush finish with drywall or other substrates.
Flush-Mount colored stainless steel end wall guards cap end walls to protect from impact caused by moving carts, equipment, and pedestrian traffic. Colored stainless steel adds visual appeal and allows for more design options. These colored stainless steel end wall guards are flush-mounted, which means they are installed directly to studs to create a flush finish with drywall or other substrates. Each end wall guard is custom-fabricated to field verified dimensions to ensure a flush finish with the wall. Choose from several standard sizes and color options below or inquire about custom options that meet your specific project requirements.
Features:
- Manufactured from type 304 #4 satin finish colored stainless steel
- Standard and custom wing sizes available
- Standard and custom heights available
- Standard and custom corner radiuses available
- Other stainless steel grades and finishes available
Available options
-
SKU#:
CGC-300-EW
-
Material:
Type 304 #4 satin finish colored stainless steel
-
Mounting Options:
Mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Inside Dimension:
Custom-fabricated to field verified dimensions
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available. Consult with factory for a recommended gauge.

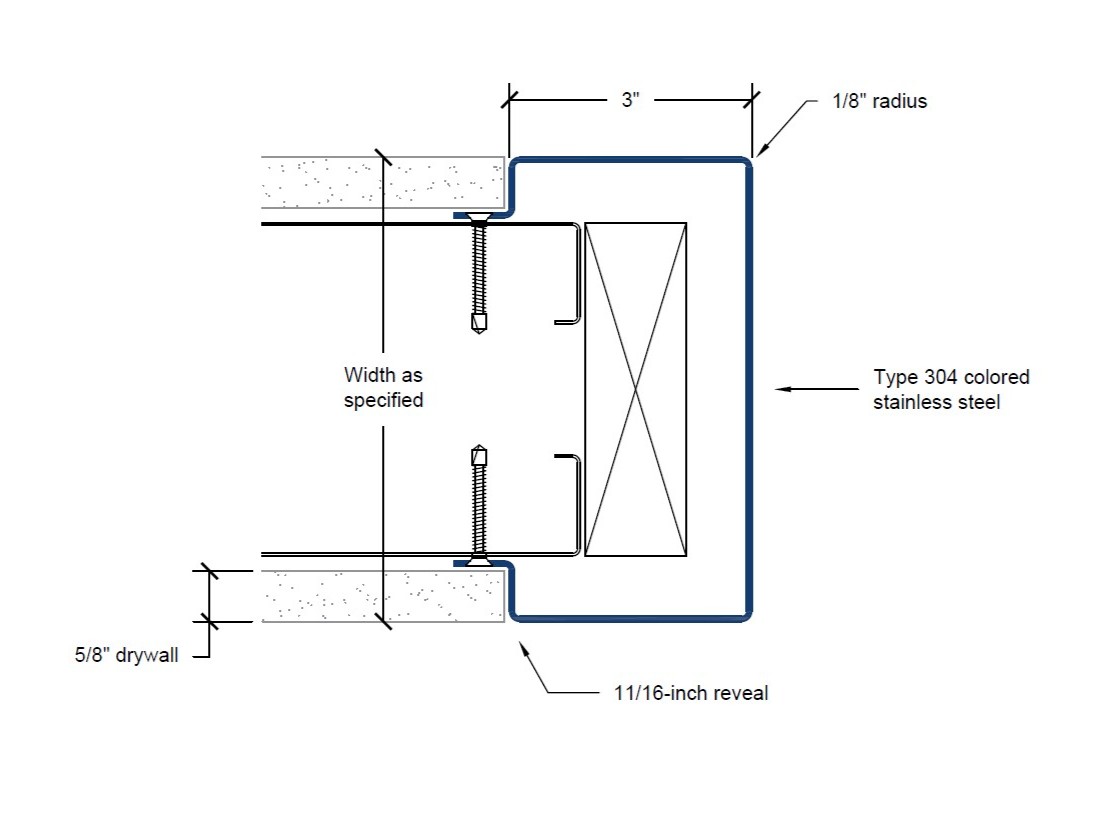

CGC-300-EW Colored Stainless Steel End Wall Guard
Flush-mount end wall guard manufactured from type 304 #4 satin finish colored stainless steel with 3-inch wing size. Custom-fabricated to field verified dimensions.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Colored Stainless Steel
Black
Blue
Bronze
Champagne
Charcoal
Gold
Rosy Gold
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline
CGC-300-EW | 3-inch wings; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CGC-200-EW
-
Material:
Type 304 #4 satin finish colored stainless steel
-
Mounting Options:
Mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Inside Dimension:
Custom-fabricated to field verified dimensions
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available. Consult with factory for a recommended gauge.

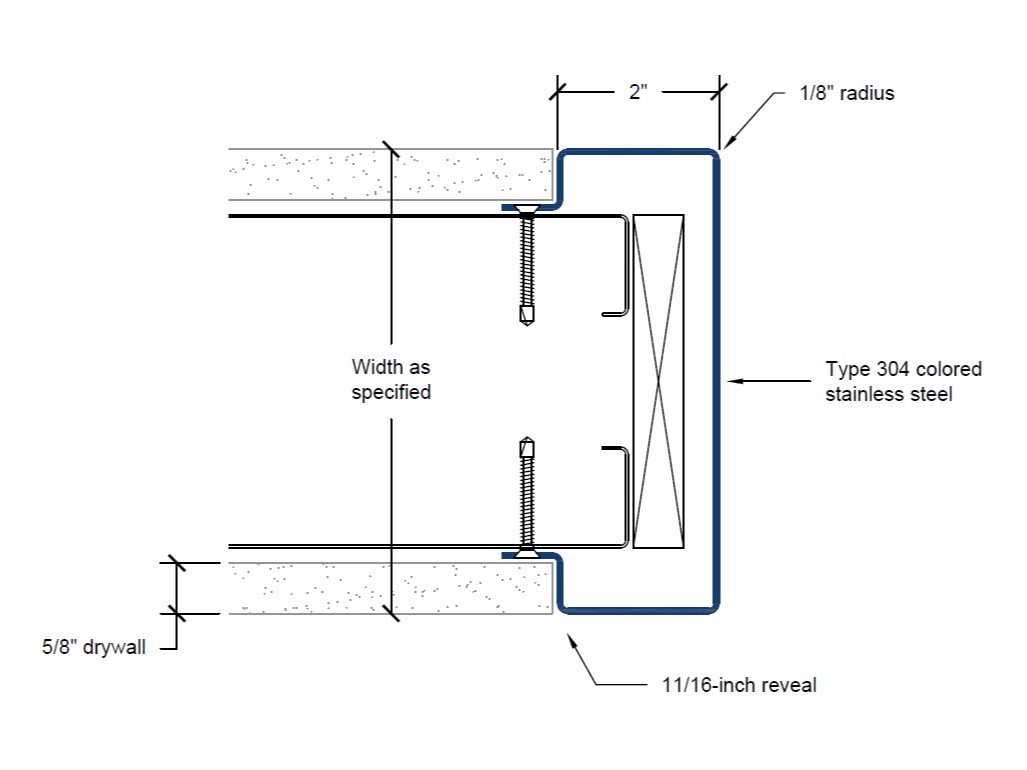

CGC-200-EW Colored Stainless Steel End Wall Guard
Flush-mount end wall guard manufactured from type 304 #4 satin finish colored stainless steel with 2-inch wing size. Custom-fabricated to field verified dimensions.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Colored Stainless Steel
Black
Blue
Bronze
Champagne
Charcoal
Gold
Rosy Gold
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline
CGC-200-EW | 2-inch wings; 1/8-inch radius
No custom options are available for this product.
