Stainless Steel Rub Rail
Stainless steel rub strip that mounts to the wall with adhesive or fasteners.
Stainless steel rub rails protect walls from impact and abrasion caused by moving carts, equipment, furniture, and pedestrian traffic. Protek stainless steel rub rail consists of strips of stainless steel sheet that mount to the wall with adhesive or mechanical fasteners. Outside corners are also available for wrapping corners, which allows the rub strips to be installed in a continuous fashion. Rub rails are supplied in standard lengths and cut to fit in the field by installers, which means no prior field measuring is required. Choose from several standard options below or inquire about custom options that meet your specific project requirements.
Features:
- Manufactured from type 304 #4 satin finish stainless steel
- Butt seams

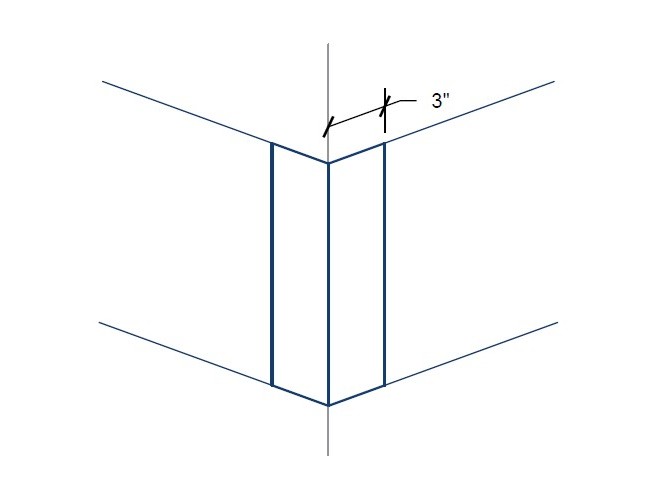

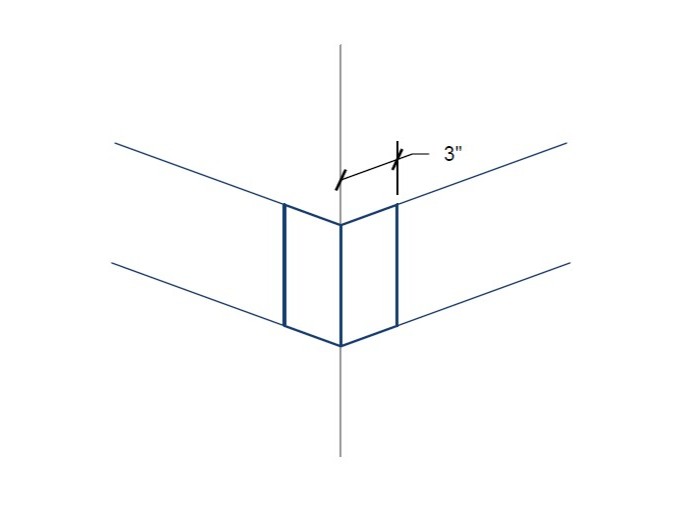

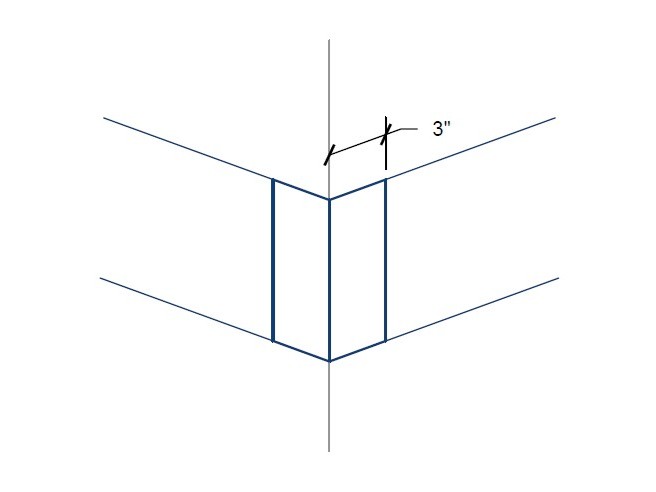

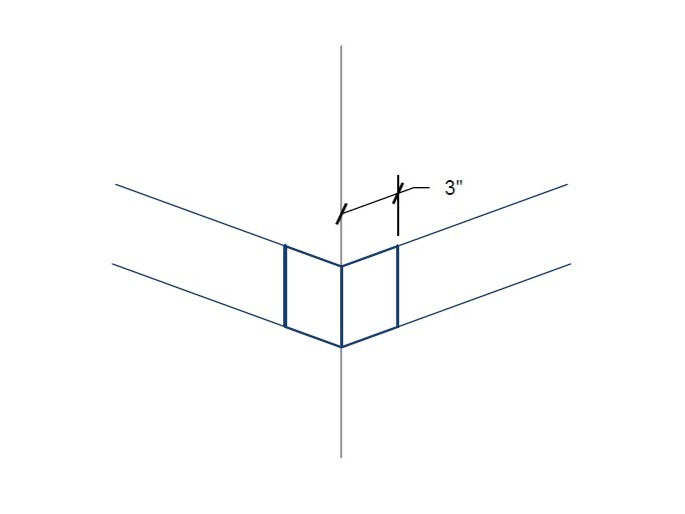

- Outside corners available for a continuous installation
- Installed with adhesive or mechanical fasteners, pre-drilled holes available
- Standard and custom heights available
- Other stainless steel grades and finishes available
Available options
-
SKU#:
CRS-64
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
4-inch x 96-inch or 4-inch x 120-inch
-
More Info:
CRS-64 rub rails are supplied in standard lengths and cut to fit in the field by installers. Custom lengths available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
CRS-64 Standard Lengths
CRS-64 rub rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish

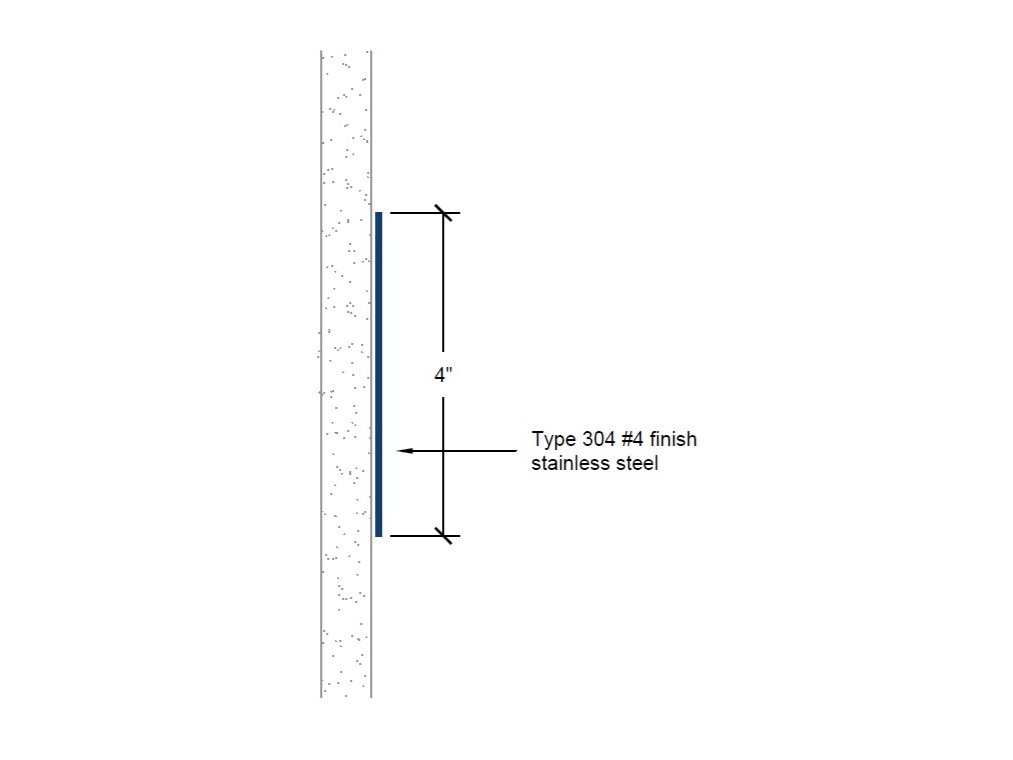

CRS-64 | 4-inch profile
No custom options are available for this product.
-
SKU#:
CRS-66
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
6-inch x 96-inch or 6-inch x 120-inch
-
More Info:
CRS-66 rub rails are supplied in standard lengths and cut to fit in the field by installers. Custom lengths available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
CRS-66 Standard Lengths
CRS-66 rub rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish

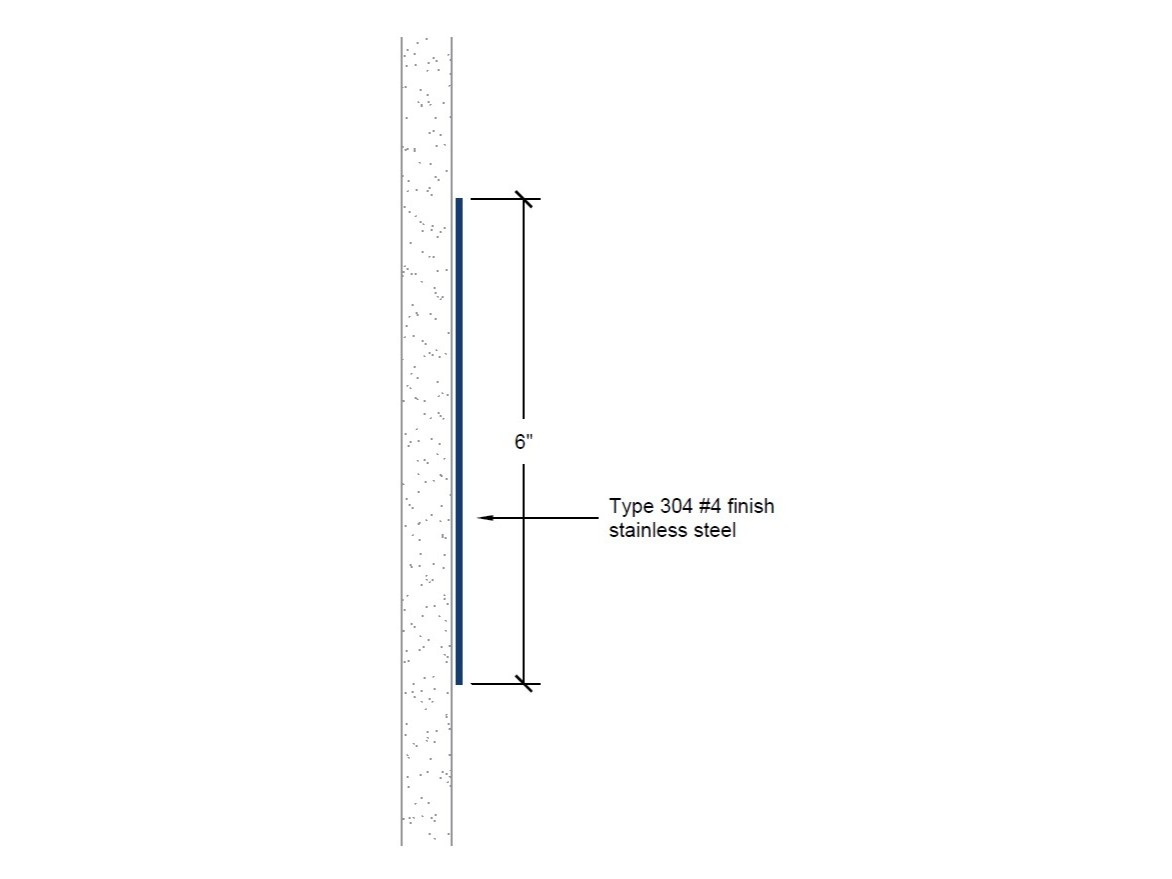

CRS-66 | 6-inch profile
No custom options are available for this product.
-
SKU#:
CRS-68
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
8-inch x 96-inch or 8-inch x 120-inch
-
More Info:
CRS-68 rub rails are supplied in standard lengths and cut to fit in the field by installers. Custom lengths available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
CRS-68 Standard Lengths
CRS-68 rub rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish

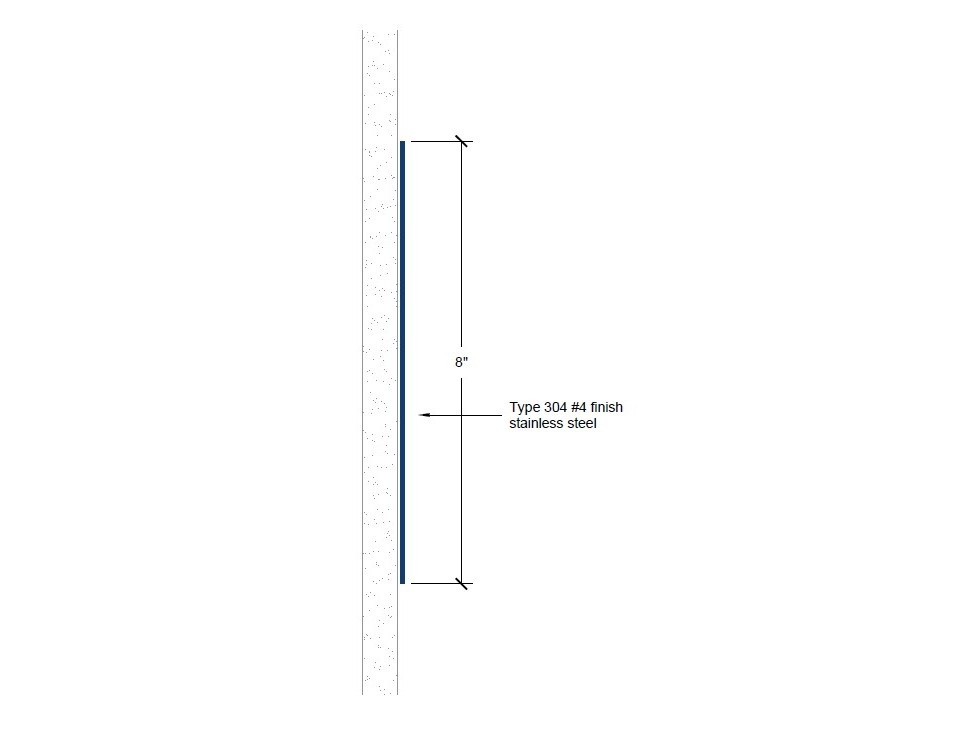

CRS-68 | 8-inch profile
No custom options are available for this product.
-
SKU#:
CRS-612
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
12-inch x 96-inch or 12-inch x 120-inch
-
More Info:
CRS-612 rub rails are supplied in standard lengths and cut to fit in the field by installers. Custom lengths available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
CRS-612 Standard Lengths
CRS-612 rub rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish

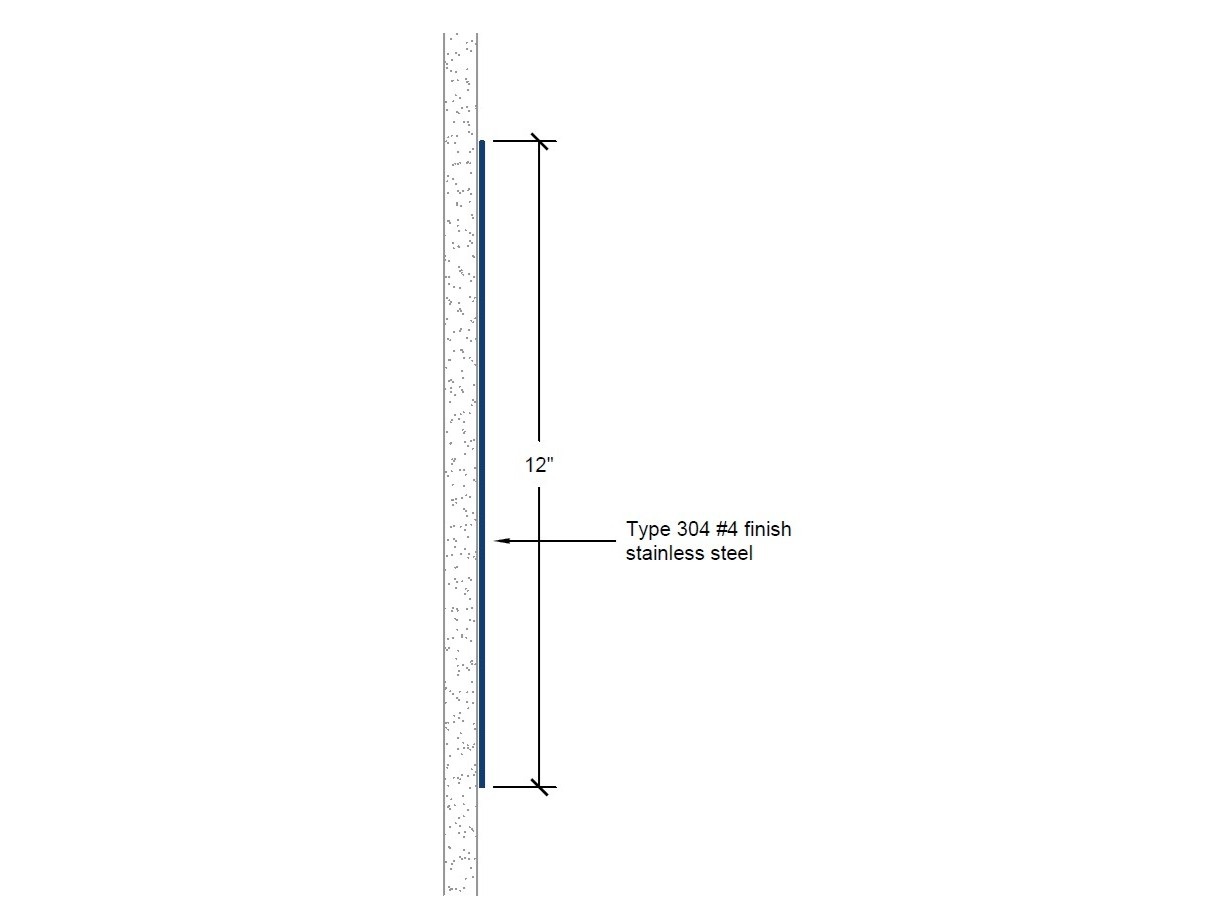

CRS-612 | 12-inch profile
No custom options are available for this product.
