Surface-Mount Rigid PVC Corner Guards
Surface-Mount rigid PVC corner guards that are installed with adhesive, fasteners, or double-stick tape.
Surface-Mount rigid PVC corner guards protect outside corners from impact caused by moving carts, equipment, and pedestrian traffic. These rigid PVC corner guards are surface-mounted, which means they are installed directly over drywall or other substrates using adhesive, mechanical fasteners, or double-stick tape. Choose from several standard color options below or inquire about custom options that meet your specific project requirements.
Features:
- Manufactured from rigid PVC (polyvinyl chloride)
- Installed with adhesive, fasteners, or double-stick tape
- Custom angles available
Available options
-
SKU#:
CG-12
-
Material:
.080-inch rigid pvc with a textured finish
-
Mounting Options:
ADH-30 contact adhesive, mechanical fasteners (by others), or ADH-4042 double-sided adhesive tape
-
Standard Sizes:
48-inch, 96-inch, 144-inch
-
More Info:
CG-12 corner guards are supplied plain. Adhesive and double-stick tape sold separately. Pre-Drilled holes available upon request for an additional charge. Custom angles and heights also available.
CG-12 Rigid PVC Corner Guard
Rigid PVC corner guard with 1 1/2-inch wing size that are available plain, drilled, or with double-stick tape. Specify mounting option when ordering.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Rigid PVC Wall Protection
CG-12 | 1 1/2-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CG-14
-
Material:
.093-inch rigid pvc with a textured finish
-
Mounting Options:
ADH-30 contact adhesive, mechanical fasteners (by others), or ADH-4042 double-sided adhesive tape
-
Standard Sizes:
48-inch, 96-inch, 144-inch
-
More Info:
CG-14 corner guards are supplied plain. Adhesive and double-stick tape sold separately. Pre-Drilled holes available upon request for an additional charge. Custom angles and heights also available.
CG-14 Rigid PVC Corner Guard
Rigid PVC corner guard with 4-inch wing size that are available plain, drilled, or with double-stick tape. Specify mounting option when ordering.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Rigid PVC Wall Protection
CG-14 | 4-inch wing; 90-deg; 3/16-inch radius
No custom options are available for this product.
-
SKU#:
CG-13
-
Material:
.093-inch rigid pvc with a textured finish
-
Mounting Options:
ADH-30 contact adhesive, mechanical fasteners (by others), or ADH-4042 double-sided adhesive tape
-
Standard Sizes:
48-inch, 96-inch, 144-inch
-
More Info:
CG-13 corner guards are supplied plain. Adhesive and double-stick tape sold separately. Pre-Drilled holes available upon request for an additional charge. Custom angles and heights also available.
CG-13 Rigid PVC Corner Guard
Rigid PVC corner guard with 3-inch wing size that are available plain, drilled, or with double-stick tape. Specify mounting option when ordering.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Rigid PVC Wall Protection
CG-13 | 3-inch wing; 90-deg; 3/16-inch radius
No custom options are available for this product.
-
SKU#:
CG-34
-
Material:
.080-inch rigid pvc with a textured finish
-
Mounting Options:
ADH-30 contact adhesive or ADH-4042 double-sided adhesive tape
-
Standard Sizes:
48-inch, 96-inch, 144-inch
-
More Info:
CG-34 corner guards are supplied plain. Adhesive and double-stick tape sold separately. Custom angles and heights also available.
CG-34 Rigid PVC Corner Guard
Rigid PVC corner guard with 3/4-inch wing size that are available plain, drilled, or with double-stick tape. Specify mounting option when ordering.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Rigid PVC Wall Protection
CG-34 | 3/4-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CG-1245
-
Material:
.080-inch rigid pvc with a textured finish
-
Mounting Options:
ADH-30 contact adhesive, mechanical fasteners (by others), or ADH-4042 double-sided adhesive tape
-
Standard Sizes:
48-inch, 96-inch, 144-inch
-
More Info:
CG-1245 corner guards are supplied plain. Adhesive and double-stick tape sold separately. Pre-Drilled holes available upon request for an additional charge. Custom angles and heights also available.
CG-1245 Rigid PVC Corner Guard
Rigid PVC corner guard with 1 1/2-inch wing size and 135-degree angle that are available plain, drilled, or with double-stick tape. Specify mounting option when ordering.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Rigid PVC Wall Protection

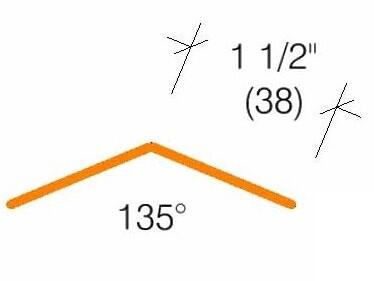

CG-1245 | 1 1/2-inch wing; 135-deg; 1/8-inch radius
No custom options are available for this product.
