Surface-Mount Stainless Steel Corner Guards
Stainless steel corner guards that install over drywall and other substrates with adhesive or fasteners.
Surface-Mount stainless steel corner guards protect outside corners from impact caused by moving carts, equipment, and pedestrian traffic. These stainless steel corner guards are surface-mounted, which means they are installed directly over drywall or other substrates using adhesive or mechanical fasteners. Choose from several standard options below or inquire about custom options that meet your specific project requirements.
Features:
- Manufactured from type 304 #4 satin finish stainless steel
- Standard and custom wing sizes available
- Standard and custom heights available
- Standard and custom corner radiuses available
- Other stainless steel grades and finishes available
Available options
-
SKU#:
CG-50
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.

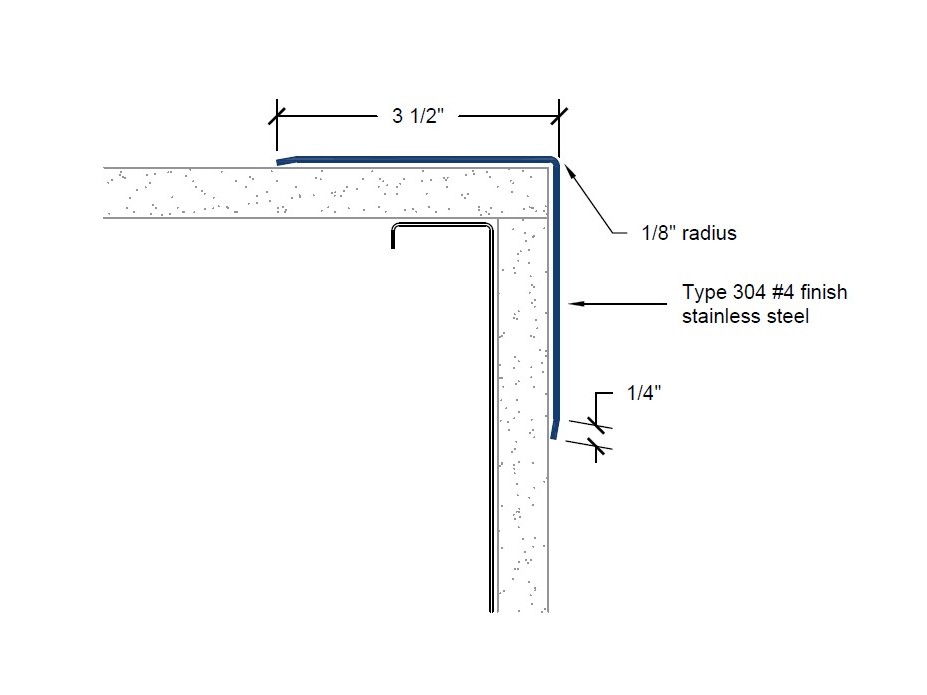

CG-50 Stainless Steel Corner Guard
Formed from type 304 #4 satin finish stainless steel with 3 1/2-inch wing size. Length as specified.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CG-50 | 3 1/2-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CG-51
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.

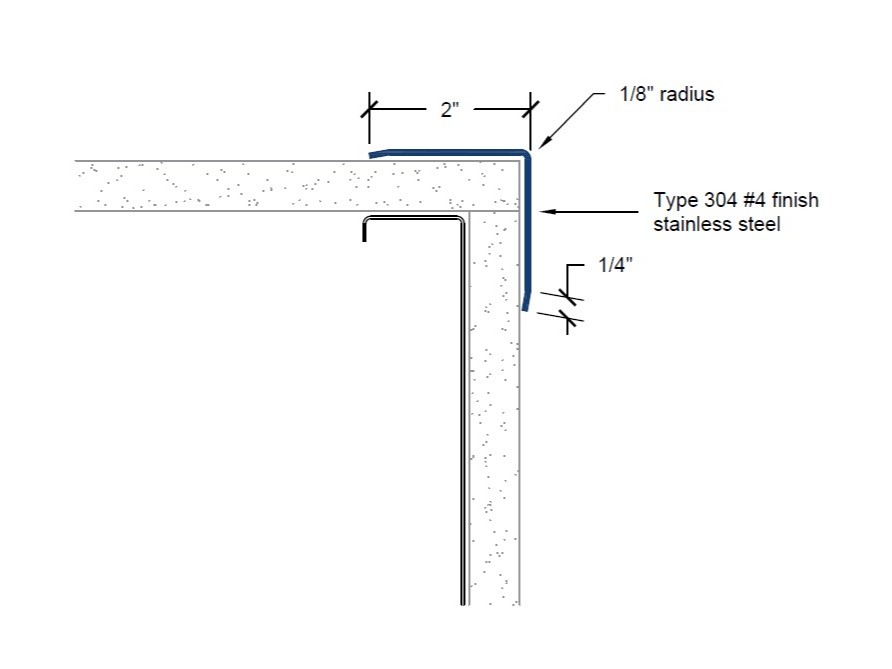

CG-51 Stainless Steel Corner Guard
Formed from type 304 #4 satin finish stainless steel with 2-inch wing size. Length as specified.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CG-51 | 2-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CG-52
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.

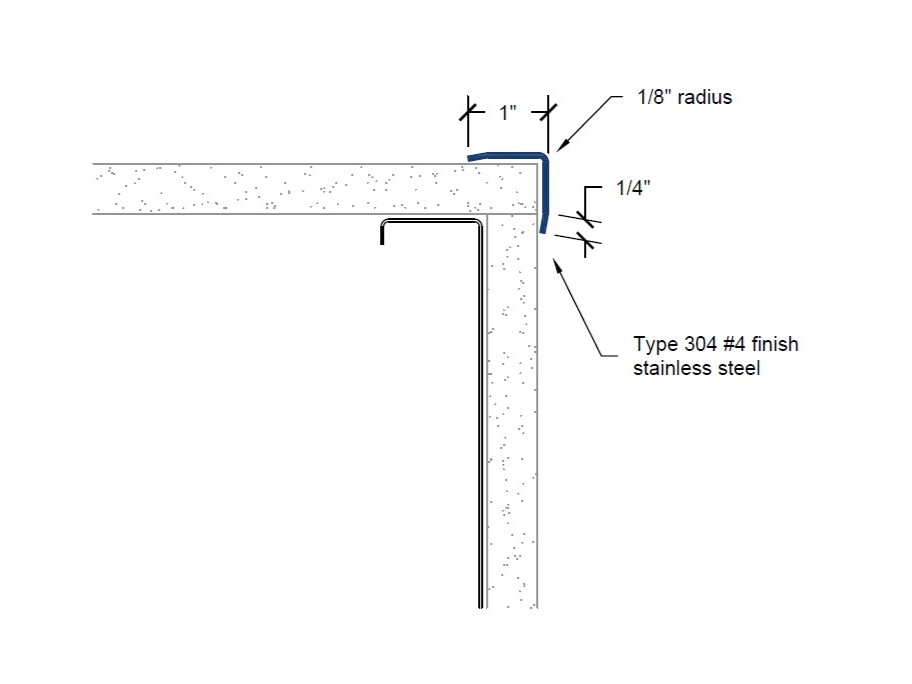

CG-52 Stainless Steel Corner Guard
Stainless steel corner guard manufactured from type 304 #4 satin finish stainless steel with 1-inch wing size.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CG-52 | 1-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CG-55
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.

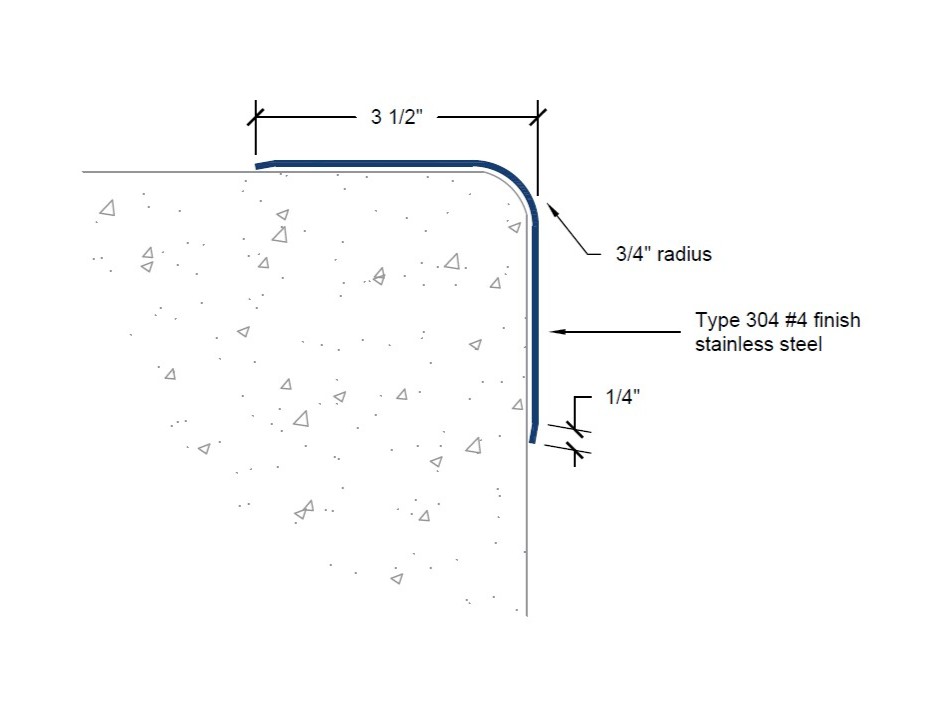

CG-55 Stainless Steel Corner Guard
Stainless steel corner guard manufactured from type 304 #4 satin finish stainless steel with 3 1/2-inch wing size and 3/4-inch bull-nose radius.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CG-55 | 3 1/2-inch wing; 90-deg; 3/4-inch radius
No custom options are available for this product.
-
SKU#:
CG-60
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.

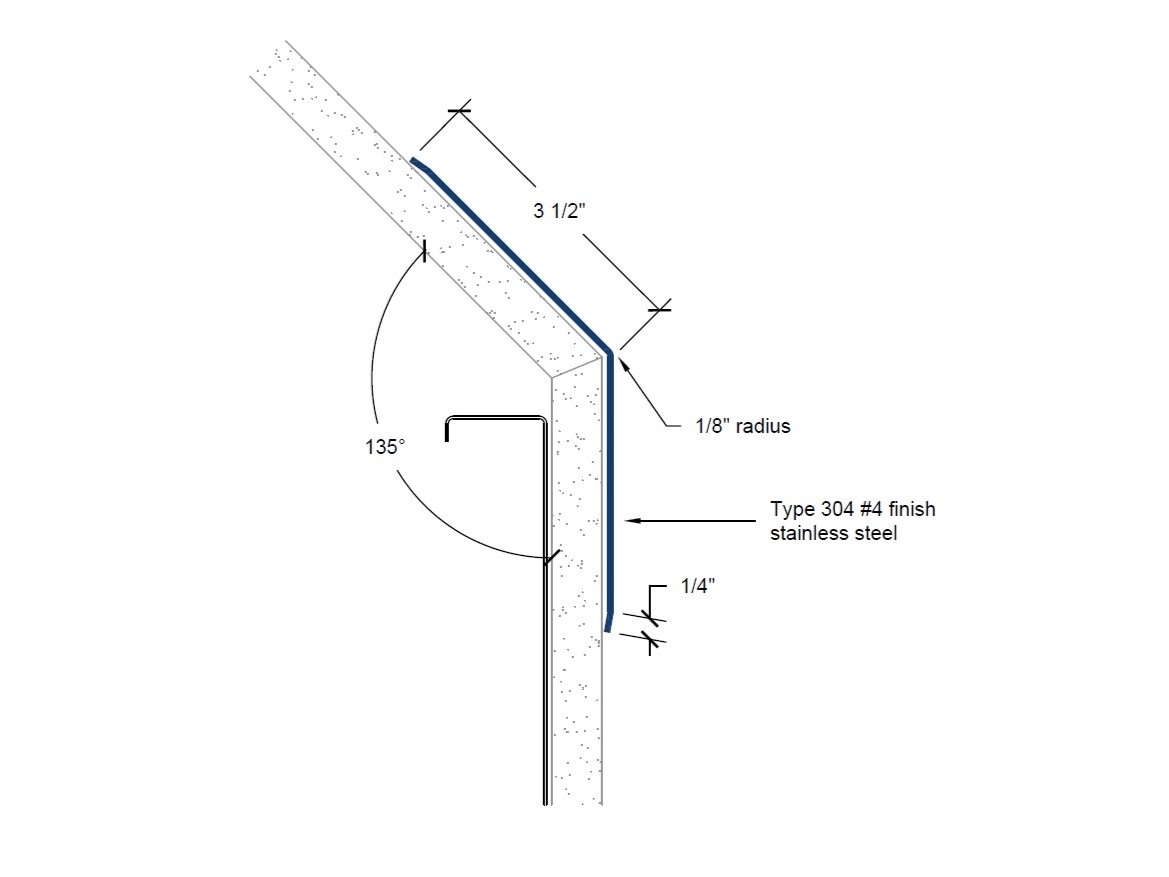

CG-60 Stainless Steel Corner Guard
Stainless steel corner guard manufactured from type 304 #4 satin finish stainless steel with 3 1/2-inch wing size and 135-degree angle.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CG-60 | 3 1/2-inch wing; 135-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CG-65
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.

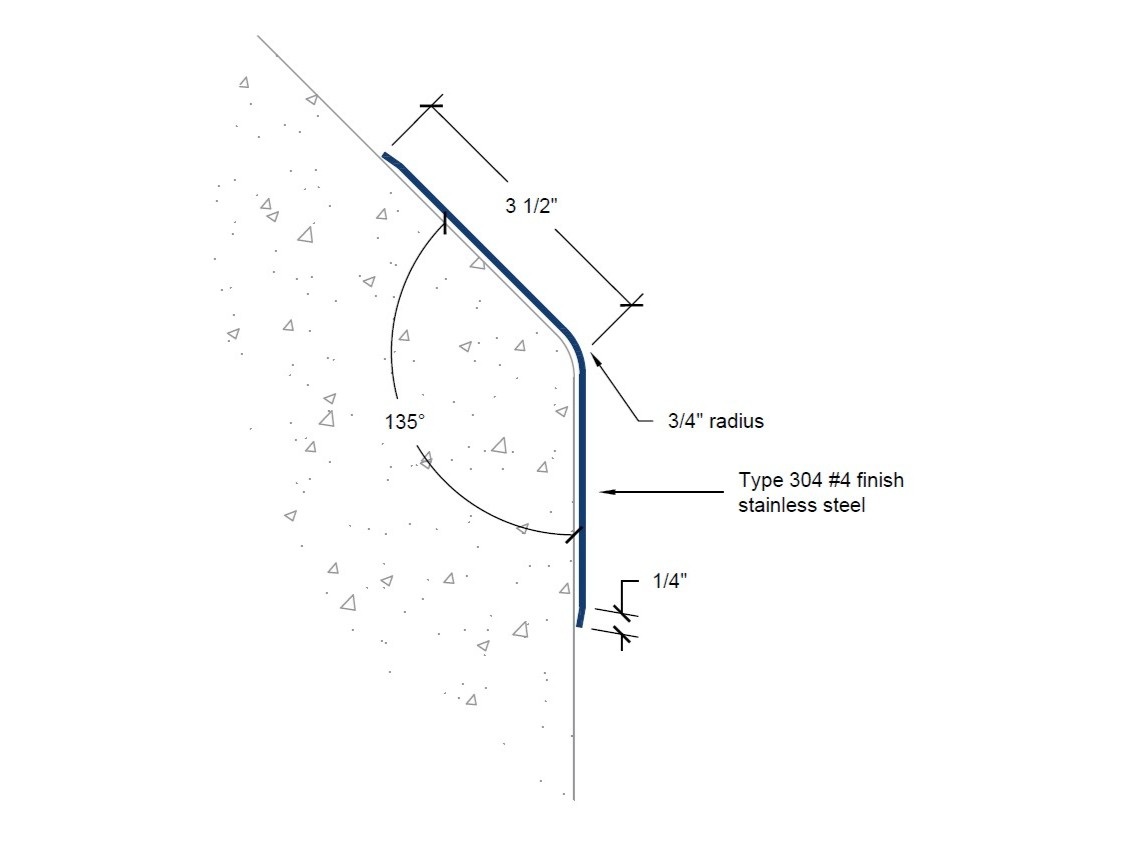

CG-65 Stainless Steel Corner Guard
Stainless steel corner guard manufactured from type 304 #4 satin finish stainless steel with 3 1/2-inch wing size, 135-degree angle, and 3/4″ rounded radius.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CG-65 | 3 1/2-inch wing; 135-deg; 3/4-inch radius
No custom options are available for this product.
