Surface-Mount Stainless Steel End Wall Guards
Stainless steel end wall guards that install over drywall and other substrates with adhesive or fasteners.
Surface-Mount stainless steel end wall guards cap end walls to protect from impact caused by moving carts, equipment, and pedestrian traffic. These stainless steel end wall guards are surface-mounted, which means they are installed directly over drywall or other substrates using adhesive or mechanical fasteners. Each end wall guard is custom-fabricated to field verified dimensions to ensure the wall is tightly capped. Choose from several standard options below or inquire about custom options that meet your specific project requirements.
Features:
- Manufactured from type 304 #4 satin finish stainless steel
- Standard and custom wing sizes available
- Standard and custom heights available
- Standard and custom corner radiuses available
- Other stainless steel grades and finishes available
Available options
-
SKU#:
CG-50-EW
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Inside Dimension:
Custom-fabricated to field verified dimensions
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.

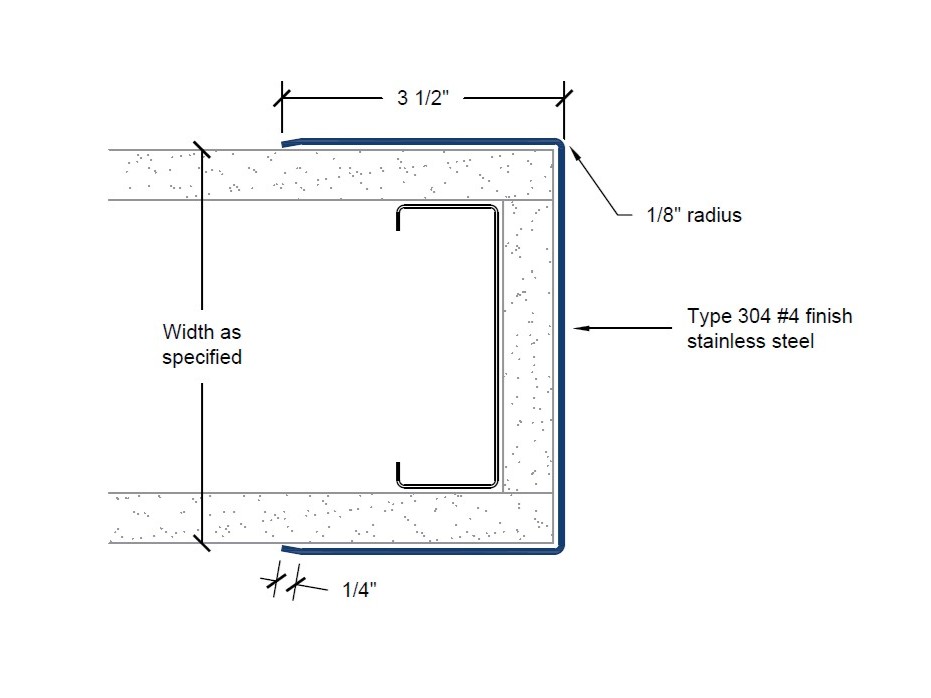

CG-50-EW Stainless Steel End Wall Guard
Stainless steel end wall guard manufactured from type 304 #4 satin finish stainless steel with 3 1/2-inch wing size. Custom-fabricated to field verified dimensions.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CG-50-EW | 3 1/2-inch wings; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CG-51-EW
-
Material:
Type 304 #4 satin finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 silicone sealant adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Inside Dimension:
Custom-fabricated to field verified dimensions
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.

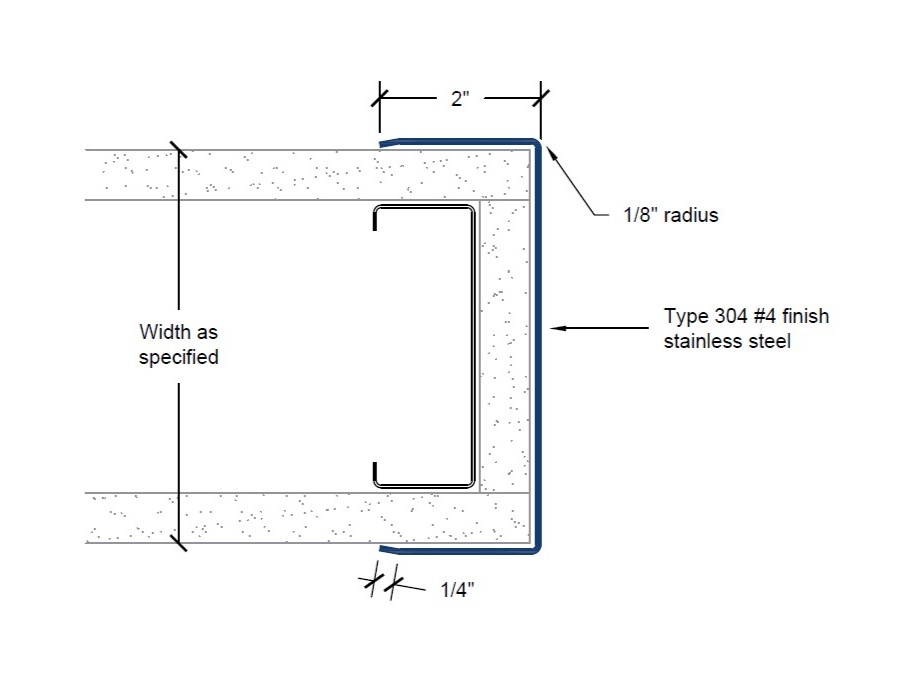

CG-51-EW Stainless Steel End Wall Guard
Stainless steel end wall guard manufactured from type 304 #4 satin finish stainless steel with 2-inch wing size. Custom-fabricated to field verified dimensions.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CG-51-EW | 2-inch wings; 1/8-inch radius
No custom options are available for this product.
